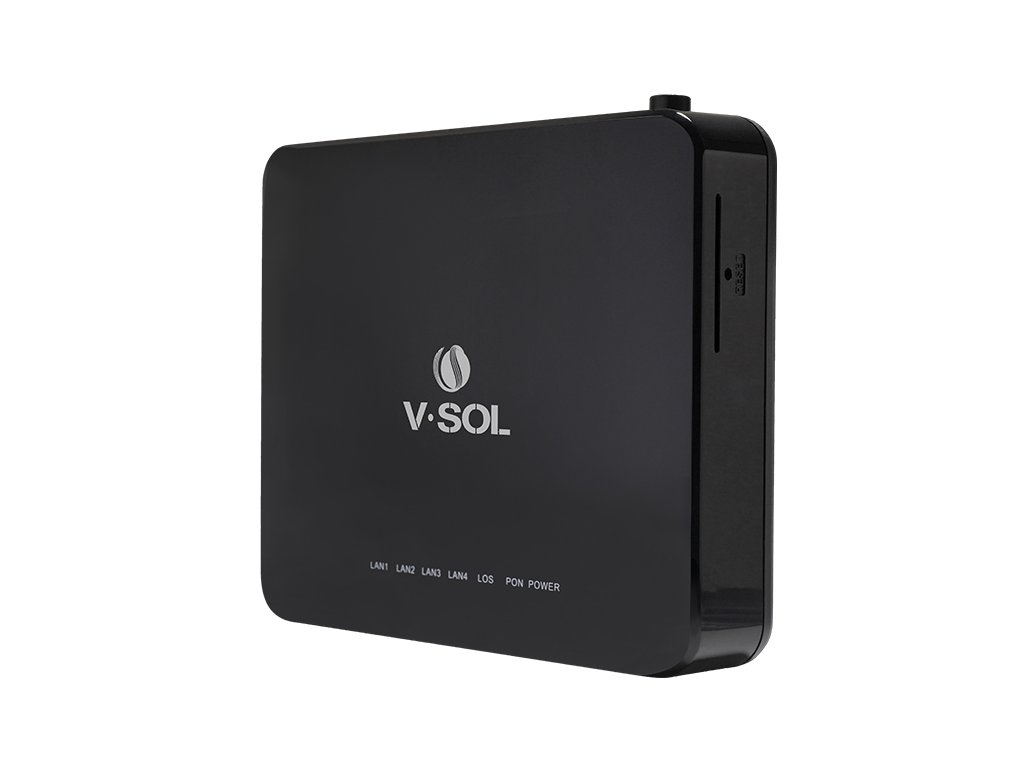

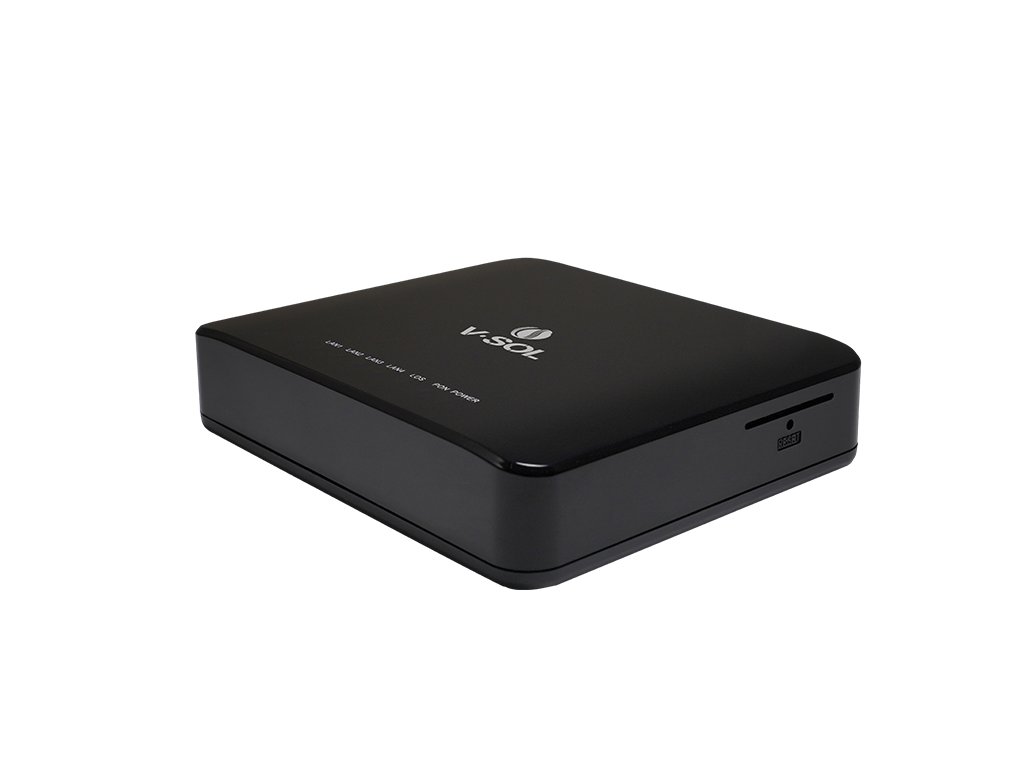

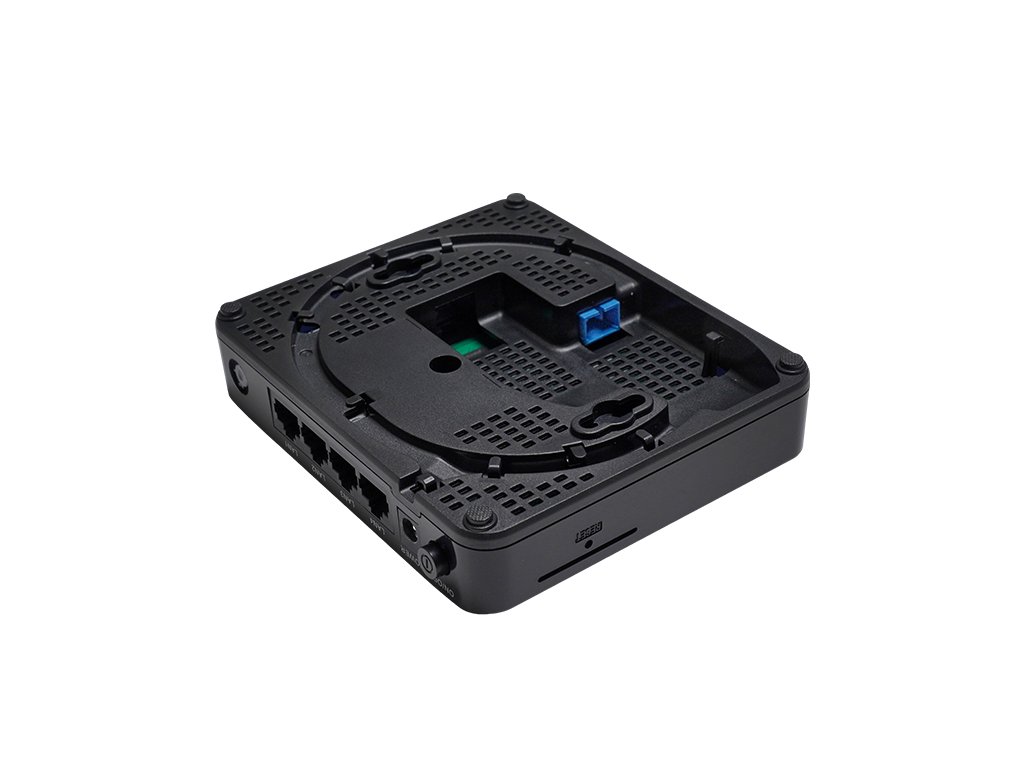

VSOL V2804Z-4G
Kód: V2804Z-4G-HGU V2804Z-4G-SFU Zvolte variantuSouvisející produkty
Detailní popis produktu
Použitelné scénáře
Vysoká spolehlivost, snadná údržba a QoS pro různé služby.
| Hardware Parameters | |
|---|---|
| Dimension | 130mm × 110mm × 30mm (L × W × H) |
| Net weight | TBD |
| Operating condition | Operating temp: 0 ~ +50°C |
| Operating humidity: 5 ~ 90% (non-condensed) | |
| Storing condition | Storing temp: -30 ~ +60°C |
| Storing humidity: 5 ~ 90% (non-condensed) | |
| Power adapter | DC 12V/1A, external AC-DC power adaptor |
| Power supply | ≤12W |
| Interfaces | 4GE |

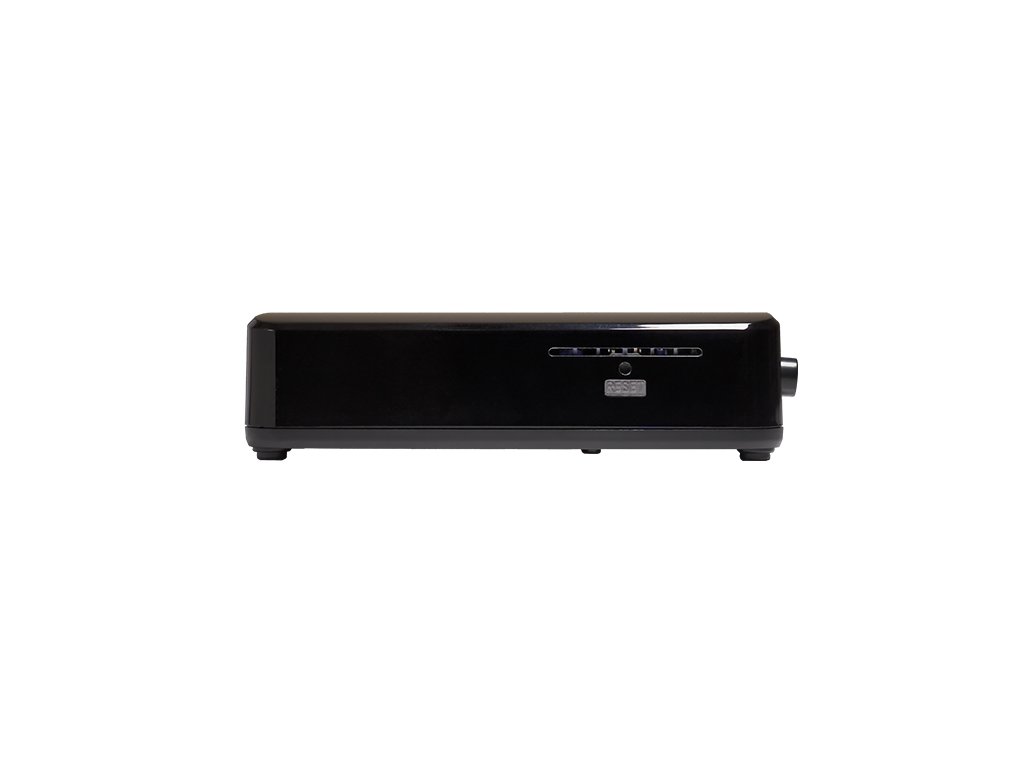

| Indicators | PWR, PON, LOS, LAN1~LAN4 |
| Interface Parameters | |
| PON interface | 1 XPON port (EPON PX20+ & GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm (EPON) or -8dBm (GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX 1490nm | |

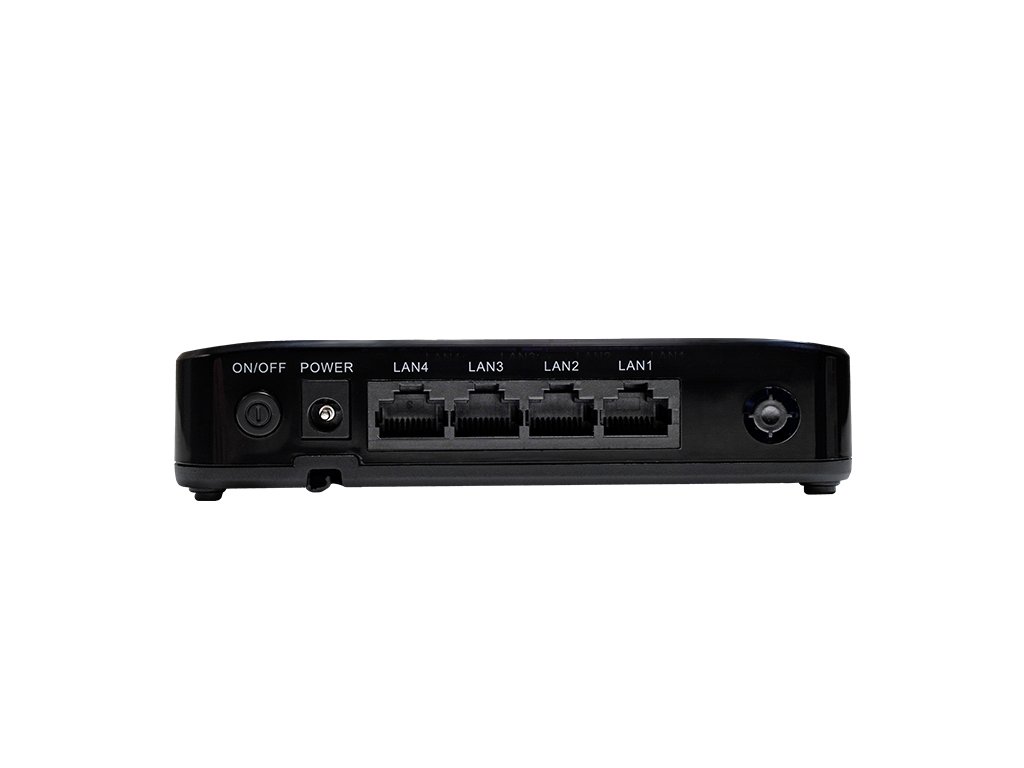

| LAN interface | 4*GE, Auto-negotiation RJ45 connectors |
| Function Data | |
| XPON Mode | Dual mode, Auto-access to EPON/GPON OLT |
| Uplink Mode | Bridging and Routing Mode |
| Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Product Features | |
| Basic | Support MPCP discovery & register |
| Support authentication Mac/Loid/Mac+Loid | |
| Support Triple Churning | |
| Support DBA bandwidth | |
| Support auto-detecting, auto-configuration, and auto firmware upgrade | |
| Support SN/Psw/Loid/Loid+Psw authentication | |
| Alarm | Support Dying Gasp |
| Support Port Loop Detect | |
| Support Eth Port Loss | |
| LAN | Support Port rate limiting |
| Support Loop detection | |
| Support Flow control | |
| Support Storm control | |
| VLAN | Support VLAN tag mode |
| Support VLAN transparent mode | |
| Support VLAN trunk mode (max 8 vlans) | |
| Support VLAN 1:1 translation mode (≤8 vlans) | |
| Auto VLAN detection | |
| Multicast | Support MLD |
| Support IGMP v1/v2/Snooping | |
| Max Multicast vlan 8 | |
| Max Multicast Group 64 | |
| QoS | Support 4 queues |
| Support SP and WRR | |
| Support 802.1P | |
| L3 | Support IPv4/IPv6 |
| Support DHCP/PPPOE/Static IP | |
| Support Static route | |
| Support NAT | |
| Management | Support CTC OAM 2.0 and 2.1 |
| Support ITUT984.x OMCI | |
| Support TR069/WEB/TELNET/CLI | |
Doplňkové parametry
| Kategorie: | ONT |
|---|---|
| Záruka: | 1 rok |
| Downlink port: | 1GE |
| Kompatibilita: | MA5800, VSOL, MA5600 |
| Typ PON sítě: | GPON, EPON |
| Wi-Fi: | - - - |
