VSOL V2804AX30
Kód: V2804AX30Související produkty
Detailní popis produktu

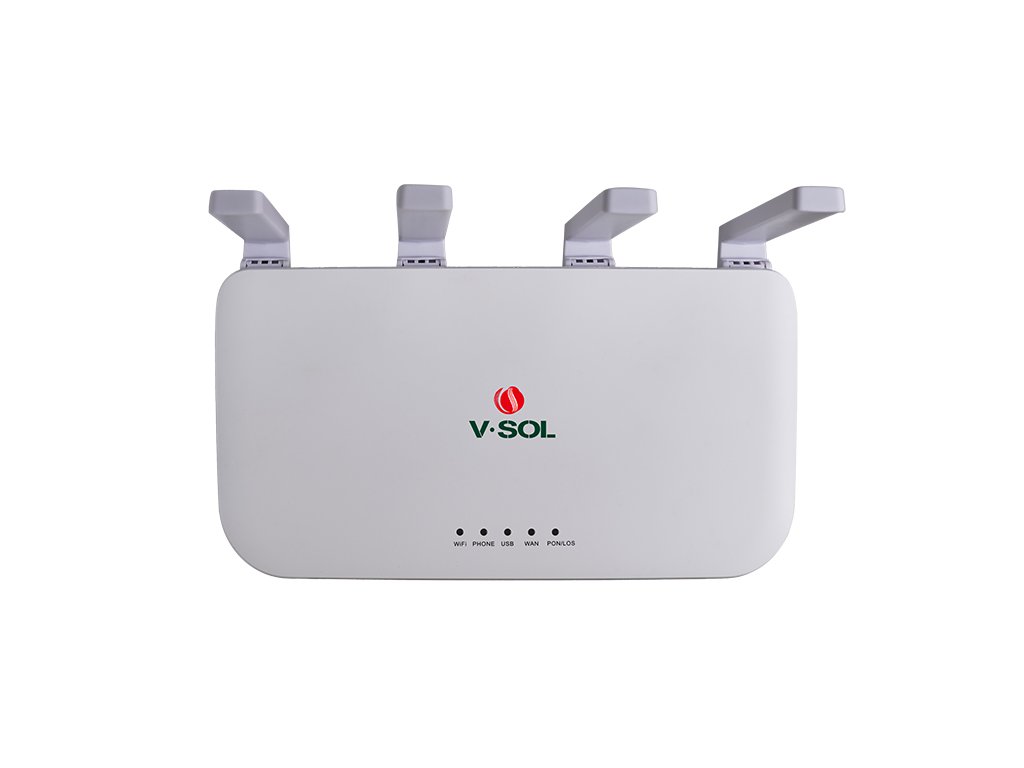

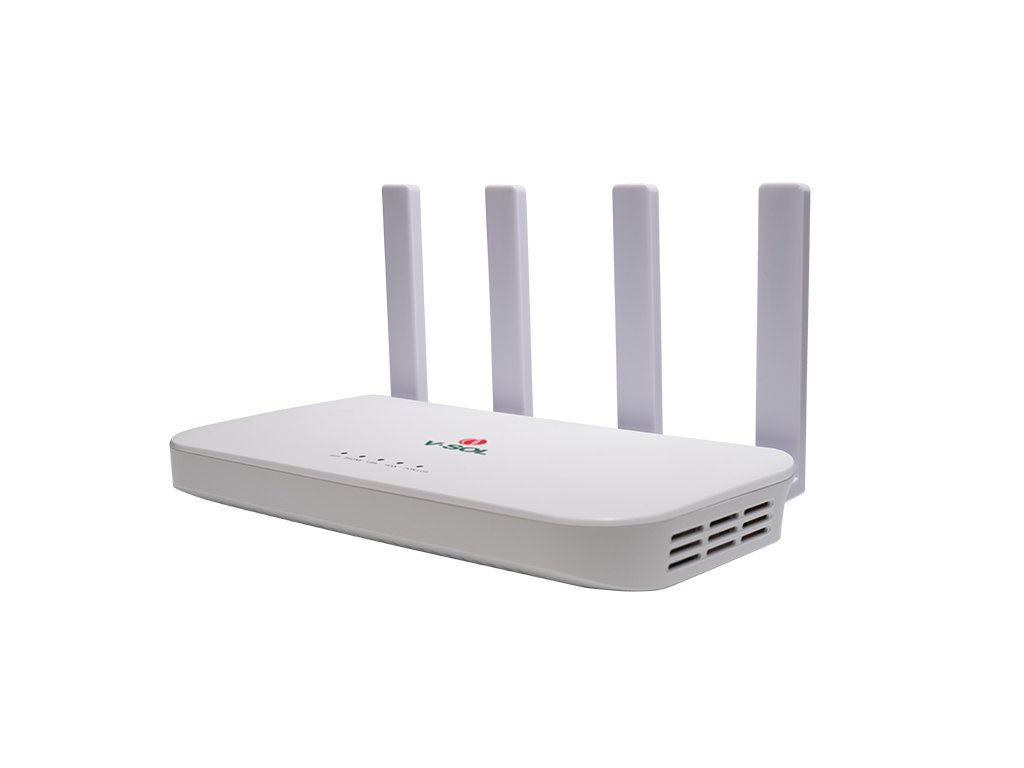

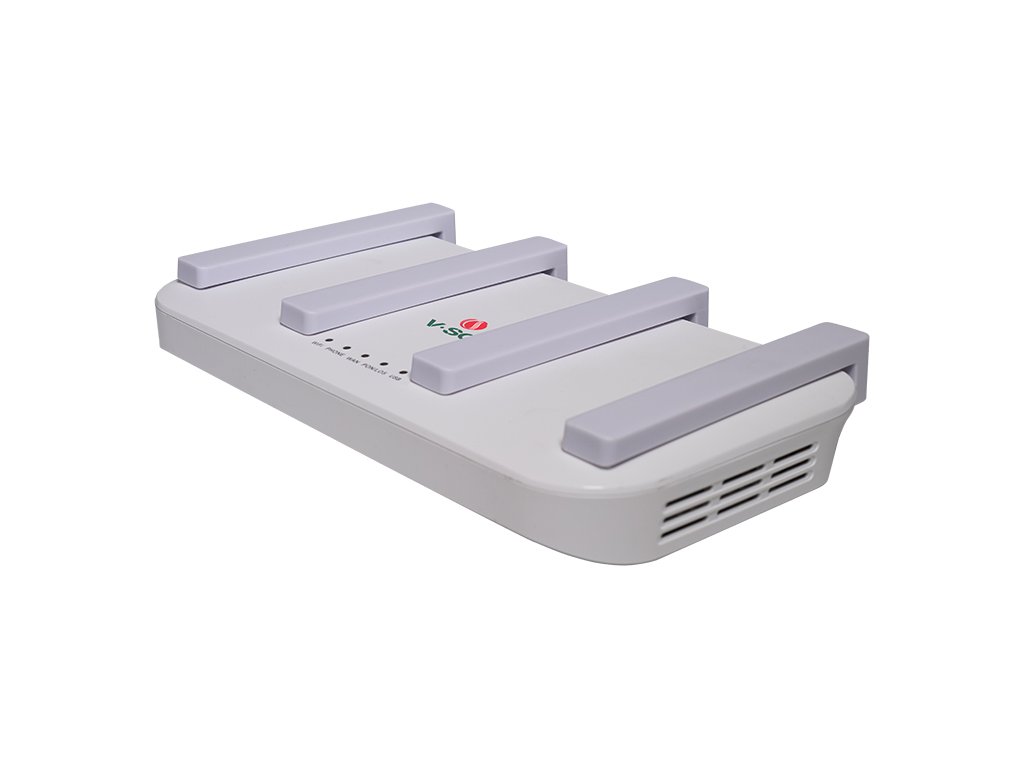

V2804AX30 XPON Dual-band WiFi 6 ONT
AX3000 WiFi 6 | OFDMA Multi-User | One SSID Dual Band
| Hardware Parameter | |
|---|---|
| Dimension | 250mm×145mm×36mm(L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp:0 ~ +55°C |
| Operating humidity:5 ~ 90% (non-condensed) | |
| Storing condition | Storing temp: -30 ~ +60°C |
| Storing humidity: 5 ~ 90% (non-condensed) | |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
| Power supply | ≤18W |
| Interface | 1XPON+1x2.5GW+3GE+USB3.0+WiFi6 |
| Indicators | PWR,PON,LOS,WAN,WiFi,ETH1~4,WPS,USB |
| Interface Parameter | |
| PON Interface | 1XPON port(EPON PX20+ and GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| User interface | 2.5GE+3x1GE, Auto-negotiation,RJ45 ports |
| Antenna | 4 ×5dBi external antennas |
| USB | 1×USB3.0 for Shared Storage/Printer |
| Function Data | |
| O&M | WEB/TELNET/OAM/OMCI/TR069 |
| Support private OAM/OMCI protocol and Unified network management of VSOL OLT | |
| Internet connection | Support Routing Mode |
| Multicast | IGMP v1/v2/v3, IGMP snooping |
| MLD v1/v2 snooping | |
| WIFI | Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz |
| WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3 | |
| Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM | |
| Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band | |
| Support AX1800 | |
| L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
Doplňkové parametry
| Kategorie: | ONT |
|---|---|
| Záruka: | 1 rok |
| Downlink port: | 1GE, 2.5GE |
| Kompatibilita: | MA5800, VSOL, MA5600 |
| Typ PON sítě: | GPON, EPON |
| Wi-Fi: | Wi-Fi 6 (802.11ax) |
