VSOL V2801D-1GT1

Kód: V2801SD-1GPD

Neohodnoceno

595 Kč 719,95 Kč včetně DPH

Objednáno

XPON ONT 1x GE, 1xCATV, SC/APC

Skladem (1 ks)

106 980 Kč

8*XG(S)/GPON Combo, 2*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28), Dual Power, Cloud management, bez SFP+

V3600G1-C V1.4

Zobrazit všechny související produkty

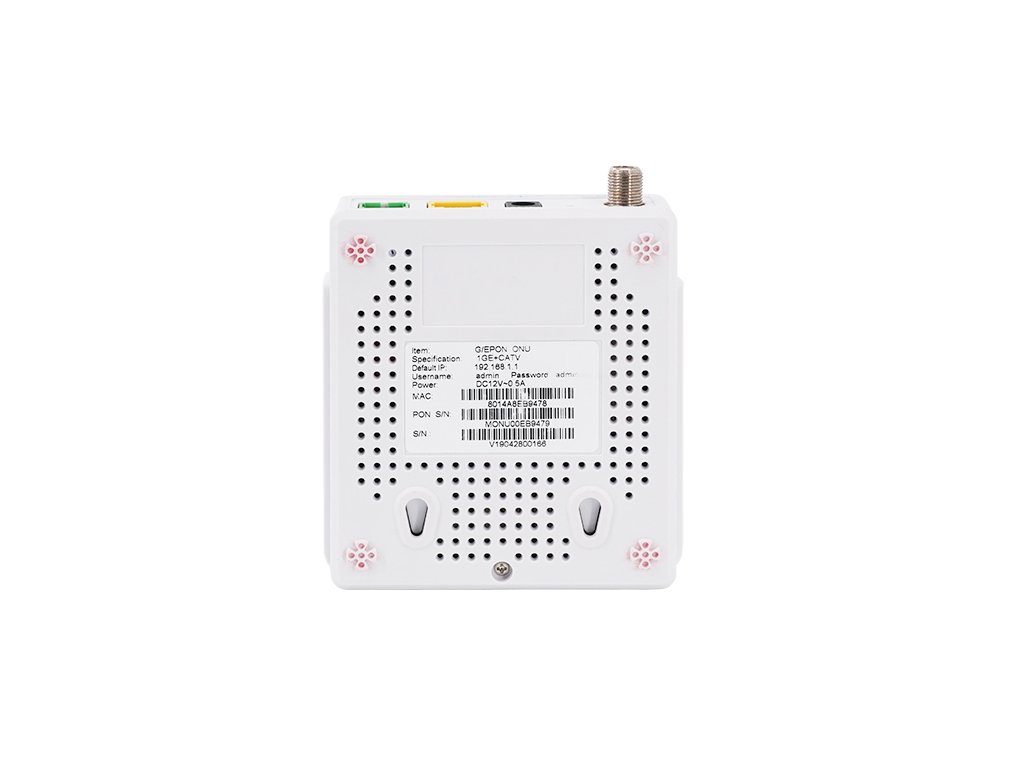

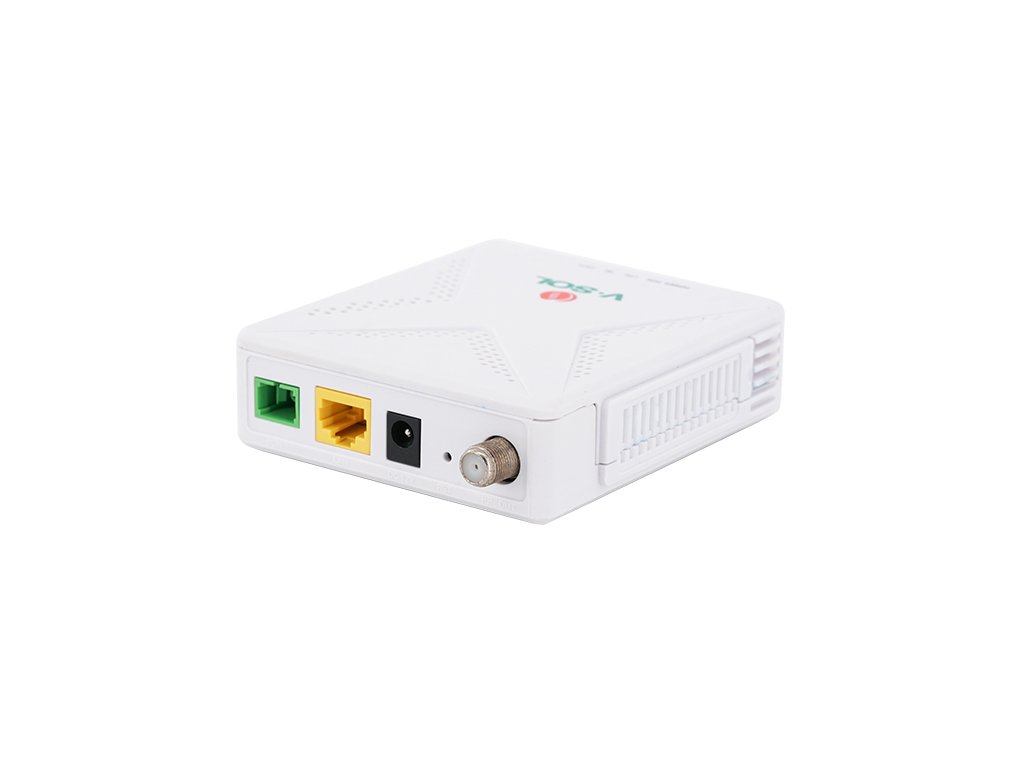

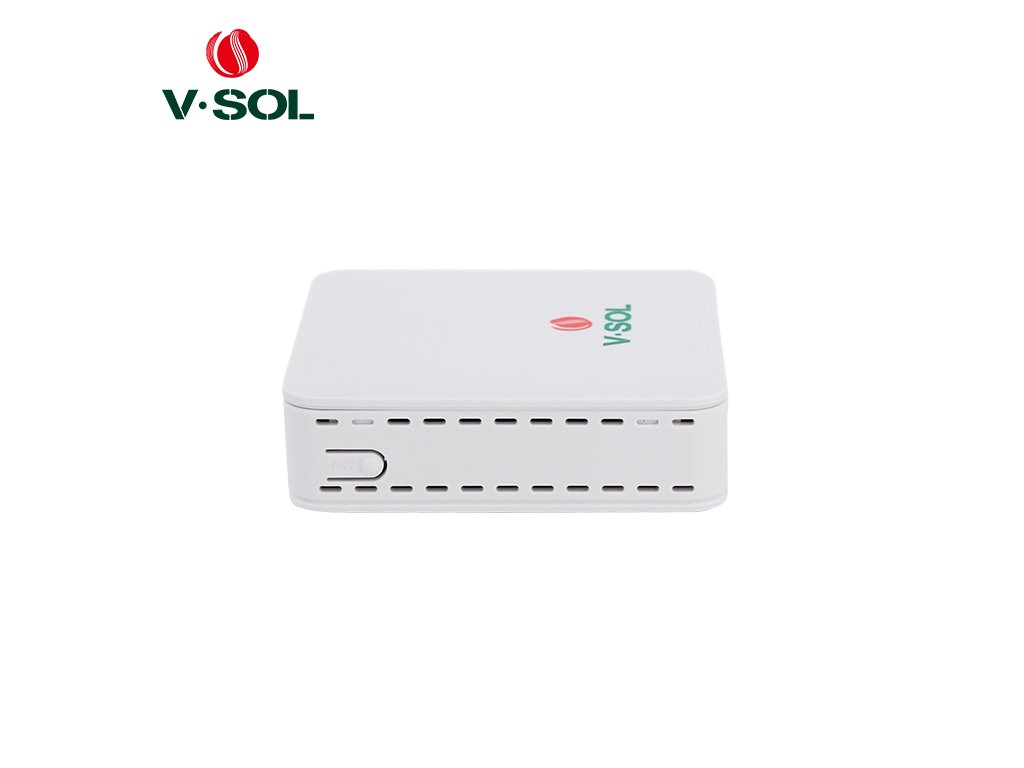

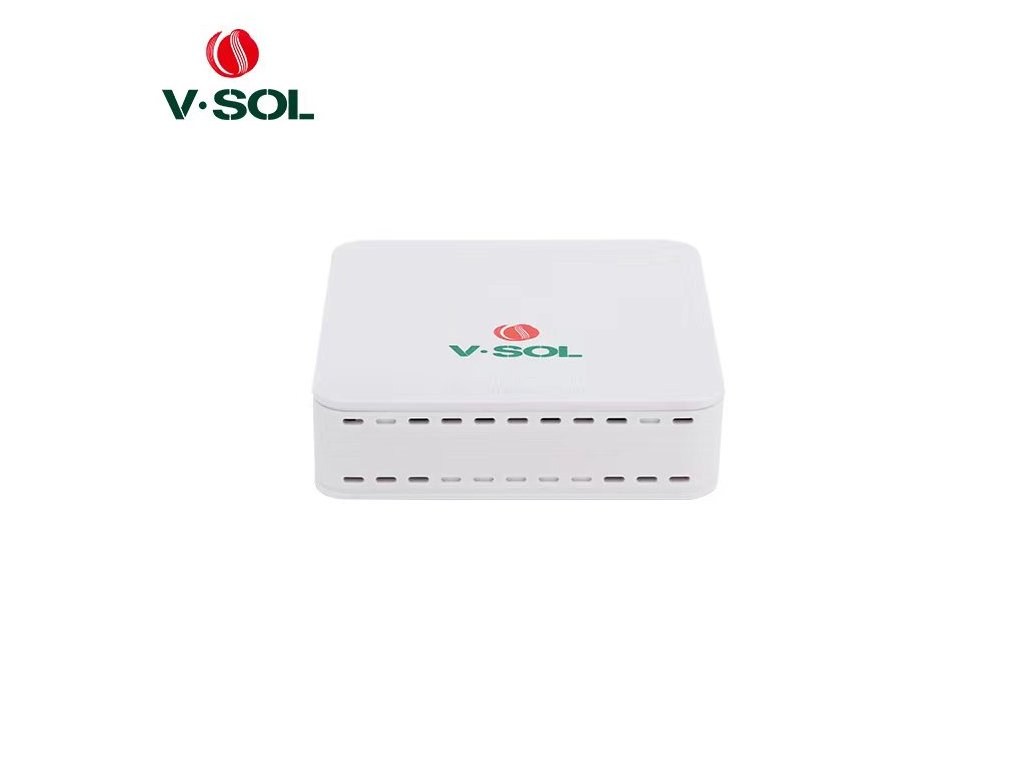

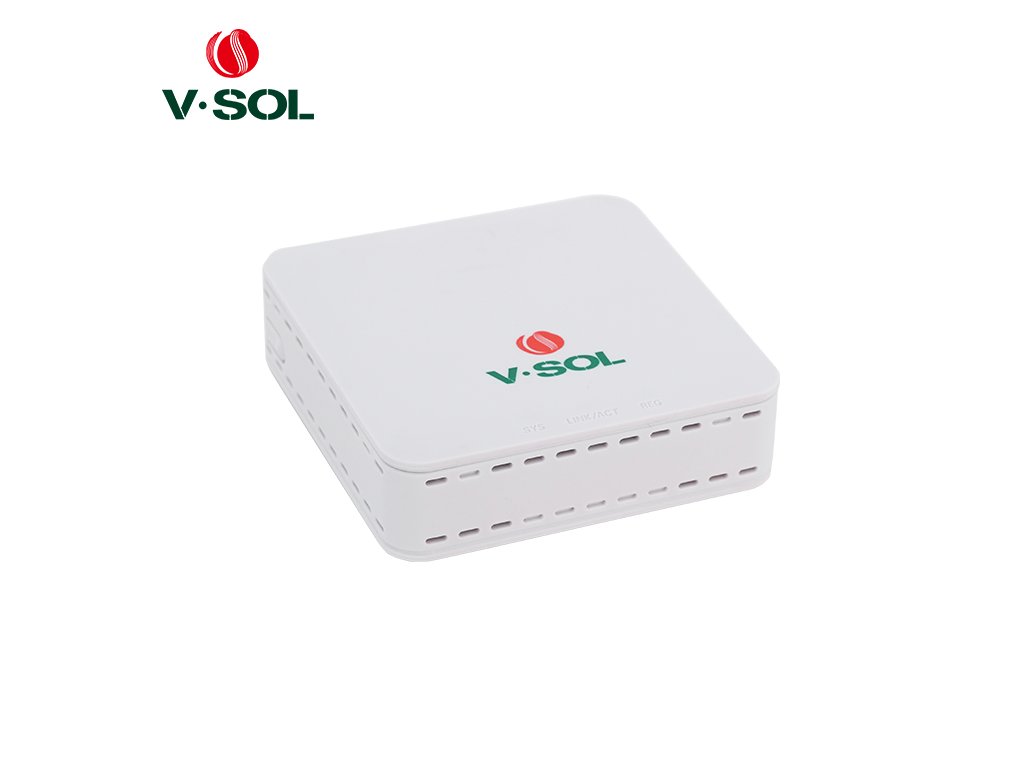

CATV ONT V2801D-1GT1

Hardware Parameter
Dimension	100mm×92mm×30mm (L×W×H)
Net weight	130g
Operating condition	Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤4.2W
Interface	1GE+CATV
Indicators	POWER, LOS, PON, LAN, CATV
Interface Parameter
PON interface	1XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX 1490nm, CATV 1550nm
LAN interface	1*GE Auto-negotiation RJ45 ports
CATV interface	V2801D V2: RF Optical power: +2～-18dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level: ≥ 70dBuV (0～-15dBm) AGC range: 0～-15dBm MER: ≥32dB (-14dBm optical input)
Function Data
PON Mode	XPON Dual Mode
Uplink Mode	Bridging and Routing Mode Well connected with OLTs of mainstream
CATV	Support CATV Remote management
Standard	Support CTC OAM 2.1 and 3.0 Support ITU-T 984.x OMCI
Layer2	802.1D & 802.1ad bridging 802.1p CoS 802.1Q VLAN
Layer3	IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS
Multicast	IGMP v2/v3, IGMP snooping
Security and Firewall	Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL
O&M	Support EMS, WEB, Telnet, CLI and unified network management of VSOL OLT
