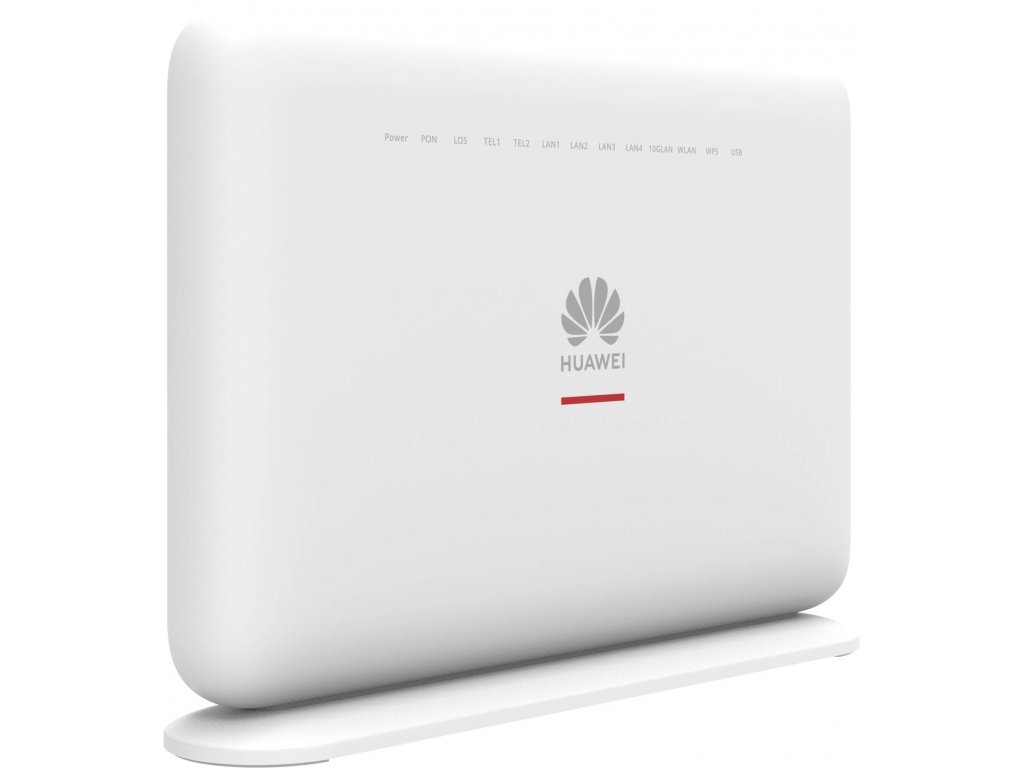

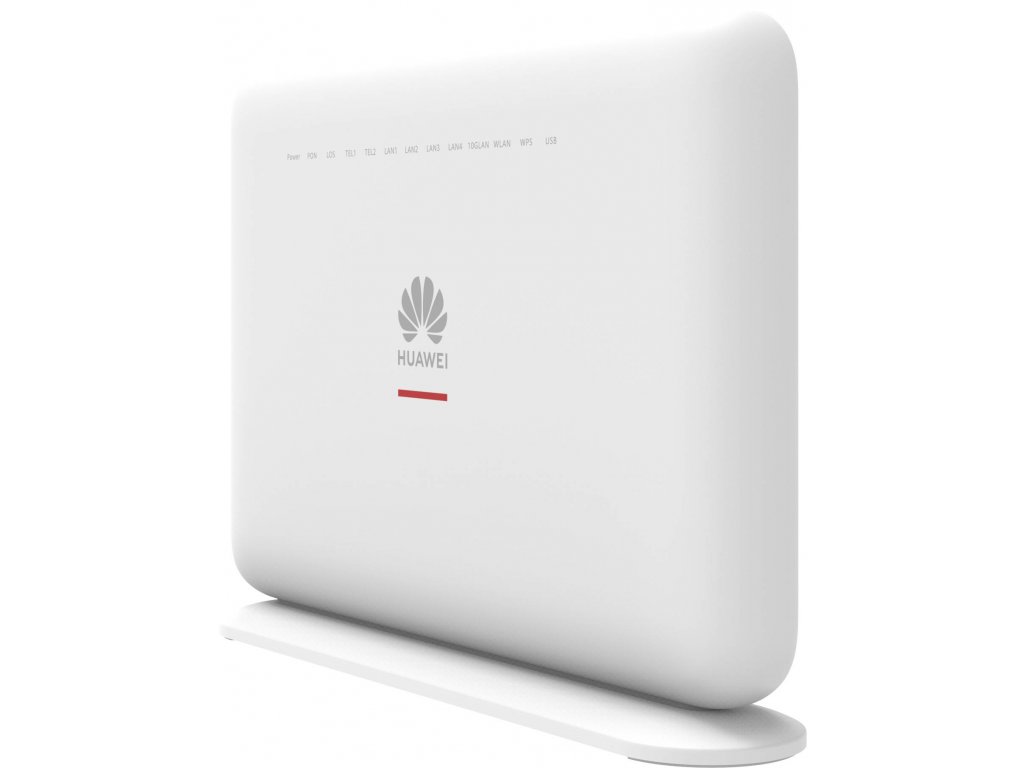

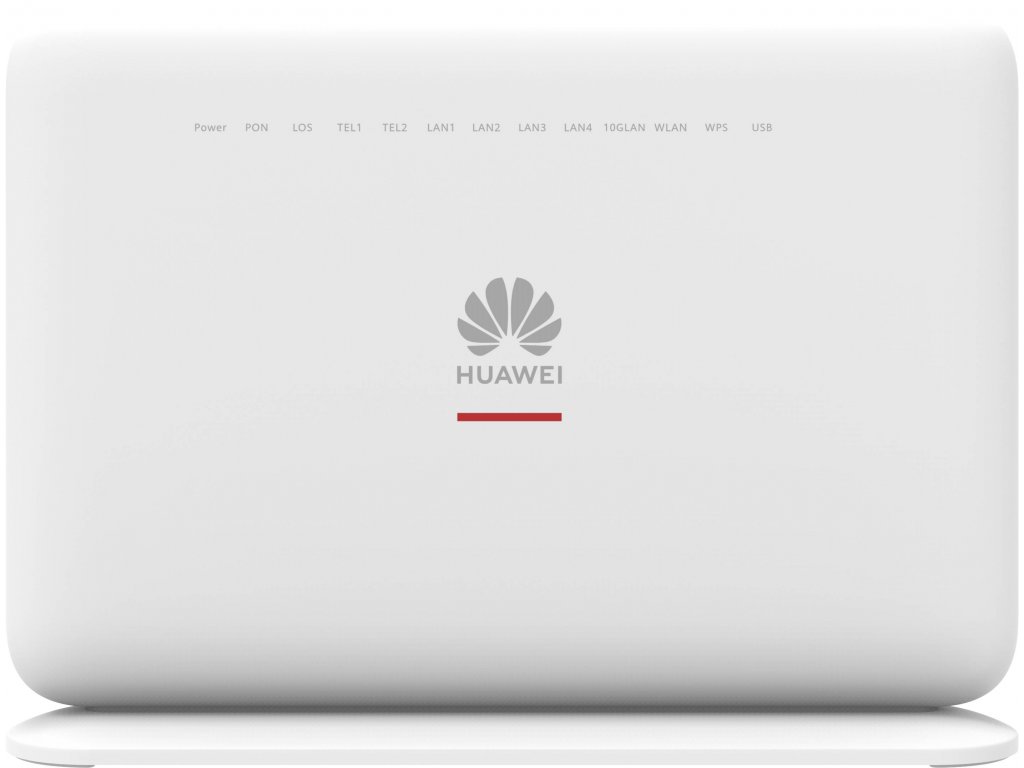

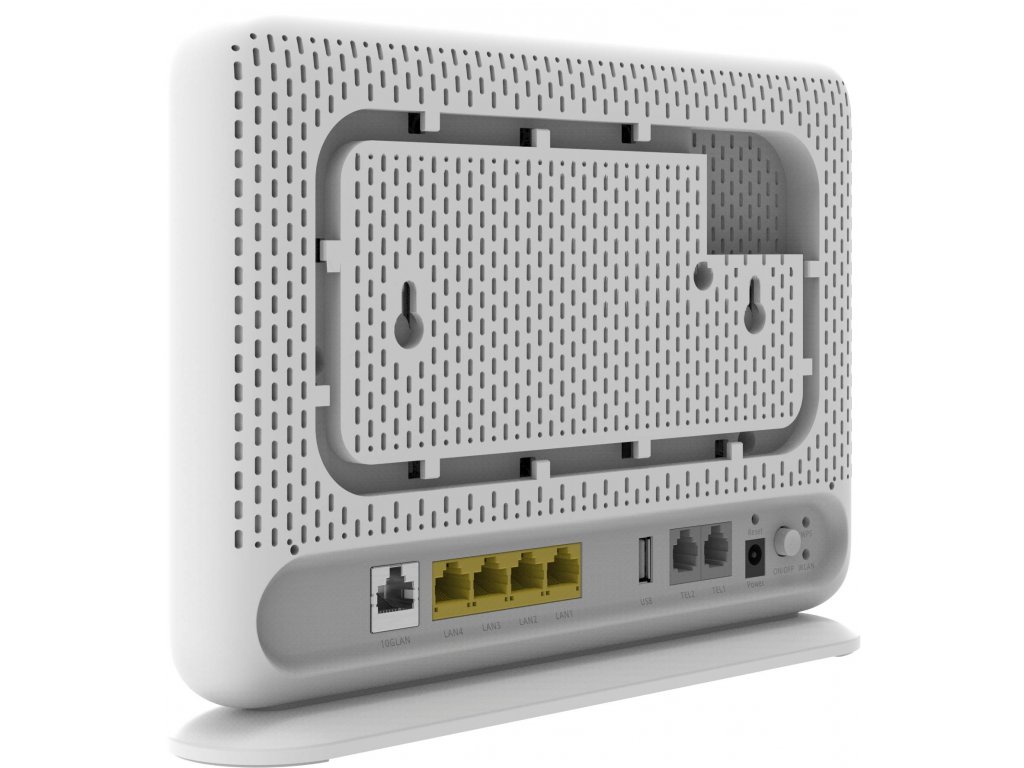

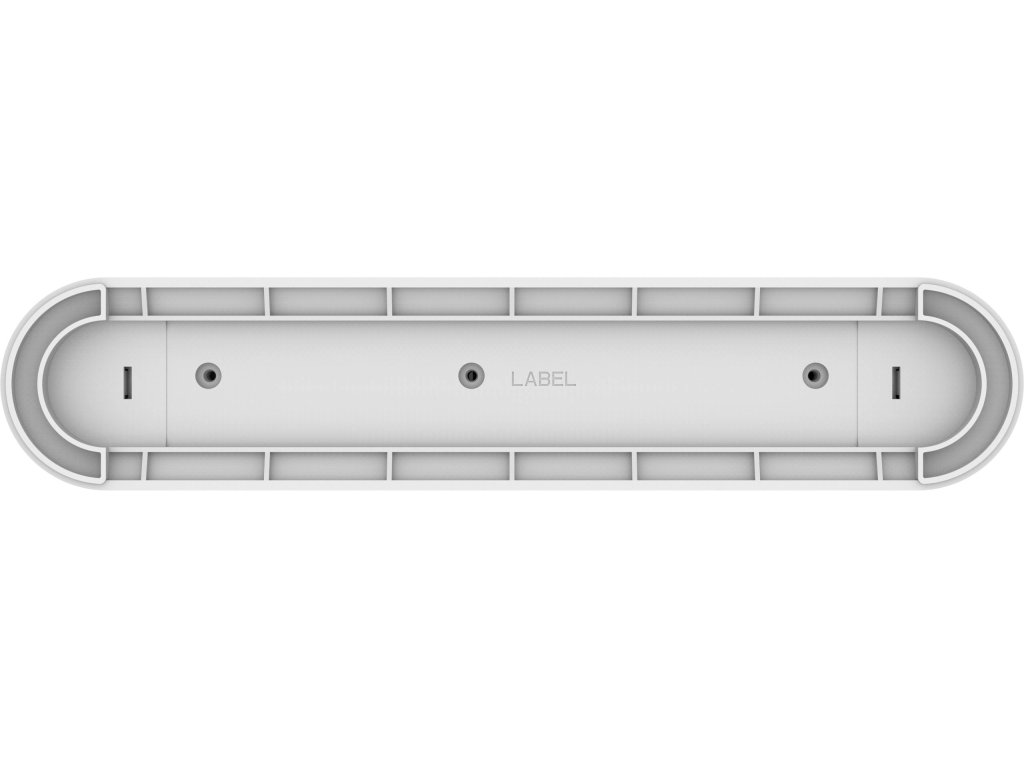

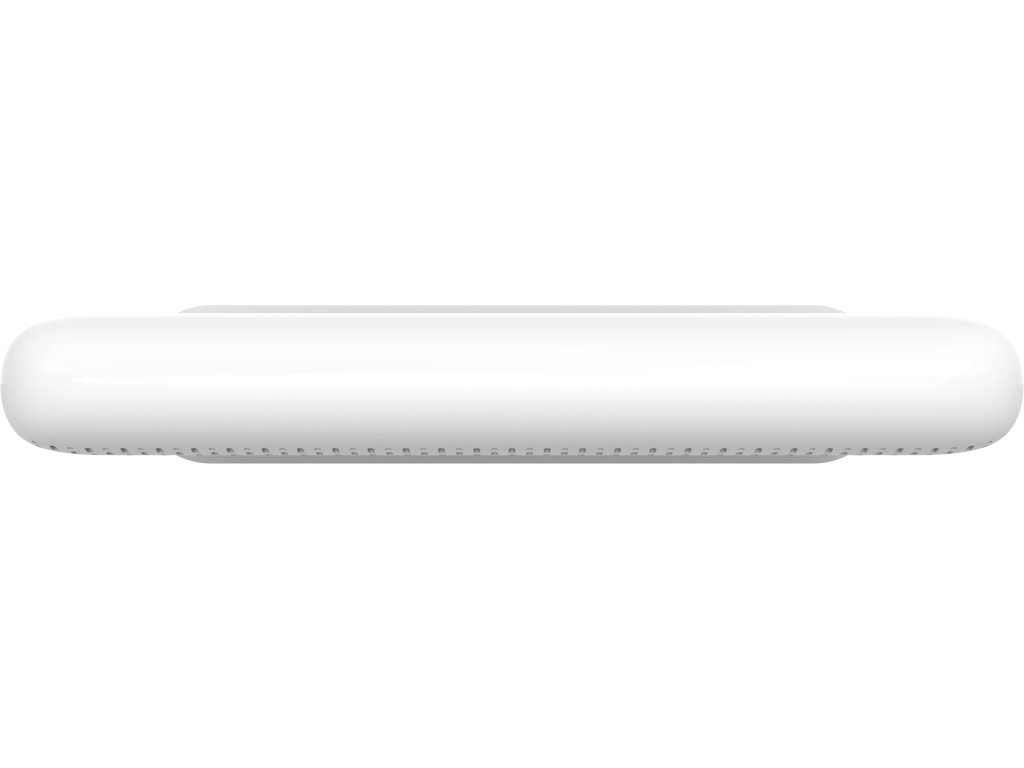

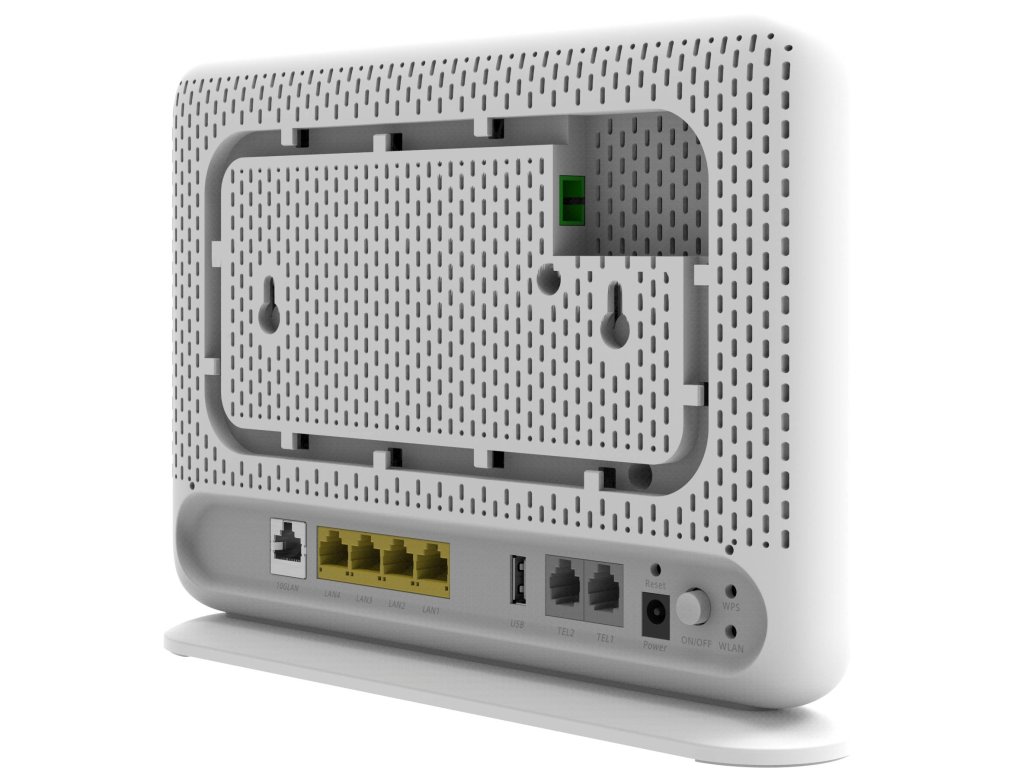

OptiXstar EN8255X6s-8X
Kód: EN8M8145X6G03Související produkty
Detailní popis produktu
| Parameters | Huawei OptiXstar EN8255X6s-8X | |
|---|---|---|
| Dimensions (H x W x D) | 176 x 250 x 35 mm | |
| Weight (Without Power Adapter) | Approximately 700 g | |
| Operating Temperature | 0–40°C | |
| Operating Humidity | 5–95% RH (non-condensing) | |
| Power Adapter Input | 100–240 V AC, 50/60 Hz | |
| System Power Supply | 11–14 V DC, 3 A | |

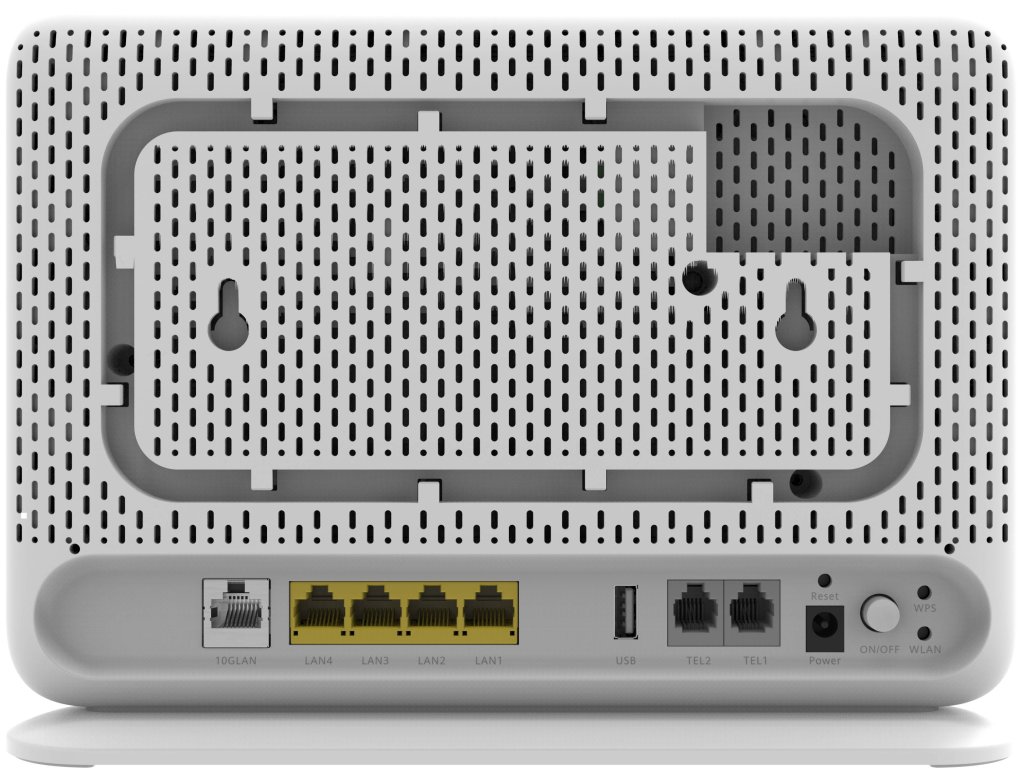

| UNI1x10GE, | 1x10 GE, 4x GE, 2 x POTS, 1 x USB, 2.4G/5G Wi-Fi 6 | |
| NNI | XGS-PON | |
| Maximum Power Consumption* |
30 W | |
| Installation Mode | Desktop | |
| XGS-PON Port | • SC/APC • Class N1/N2/E1 • Receiver sensitivity: –28 dBm • Wavelengths: US 1260–1280 nm, DS 1575–1580 nm • Wavelength Blocking Filter (WBF) • Flexible mapping between the GEM port and TCONT • SN/Password/SN + Password/Bi-directional authentication based on OMCI • Upstream and downstream FEC • SR-DBA and NSR-DBA • 10 Gbit/s upstream, 10 Gbit/s downstream |
|
| Ethernet Electrical Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto port speeds (10/100/1000 Mbit/s) • 1x10GE+4xGE |
|
| POTS Port | • Maximum REN: 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
|
| WLAN | • IEEE 802.11 b/g/n/ax (2.4G) • IEEE 802.11 a/n/ac/ax (5G) • 4 x 4 MIMO (2.4G) • 4 x 4 MIMO (5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G and 5G concurrency • Air interface rate: 1,147 Mbit/s (2.4G), 4,804 Gbit/s (5G) • Beamforming • Band steering • DL OFDMA • DL MU-MIMO • 1024 QAM • 160 MHz frequency bandwidth • WPA3 |
|
| USB Port | • USB 2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function |
|
| Power Saving | COC V7 | |
Obsah balení:
- EN8145X6
- Napájecí zdroj
- UTP 2m Cat5e
Doplňkové parametry
| Kategorie: | ONT |
|---|---|
| Záruka: | 1 rok |
| Downlink port: | 1GE, 10GE |
| Kompatibilita: | MA5800, VSOL |
| Typ PON sítě: | XGS-PON |
| Wi-Fi: | Wi-Fi 6 (802.11ax) |
