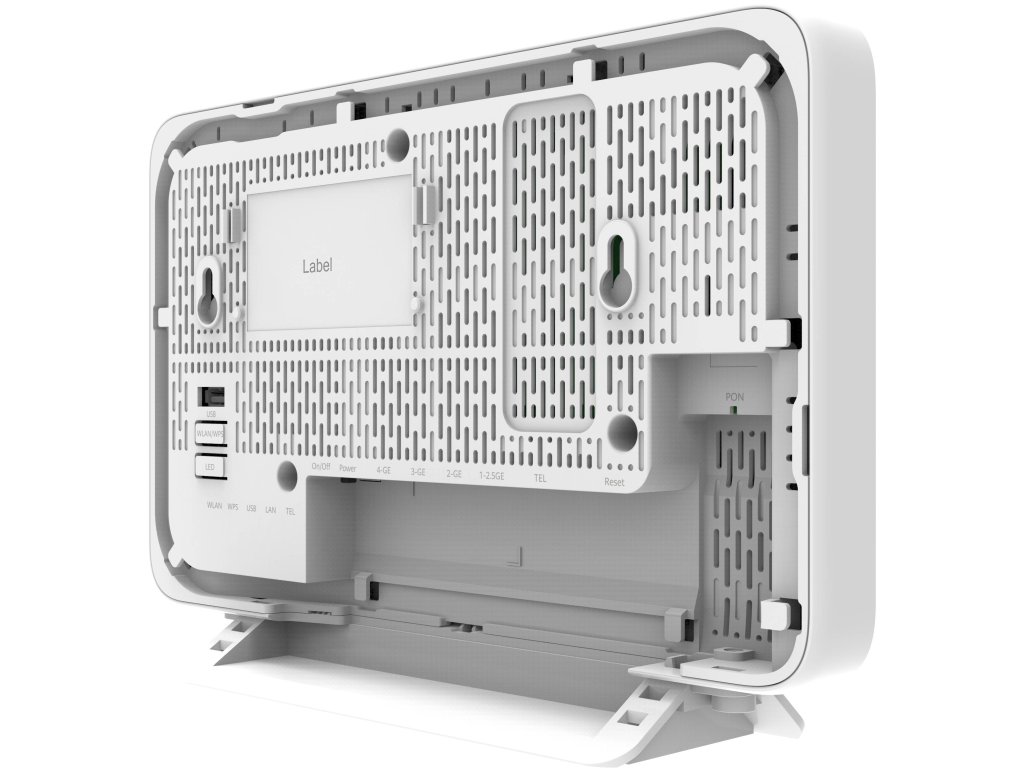

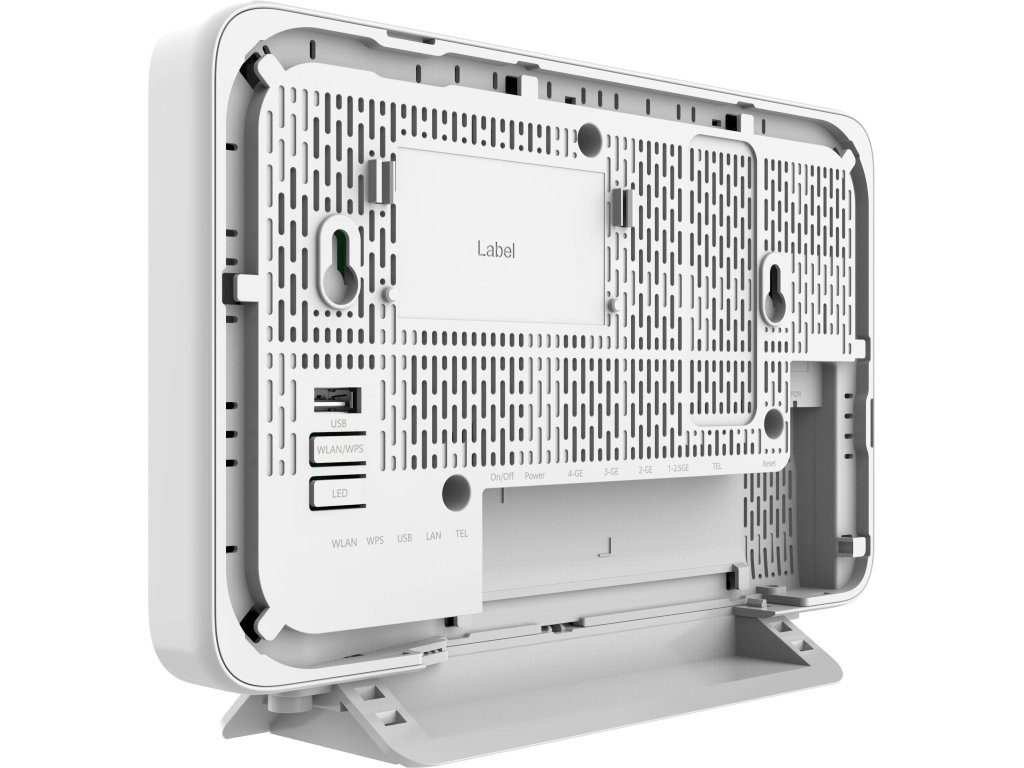

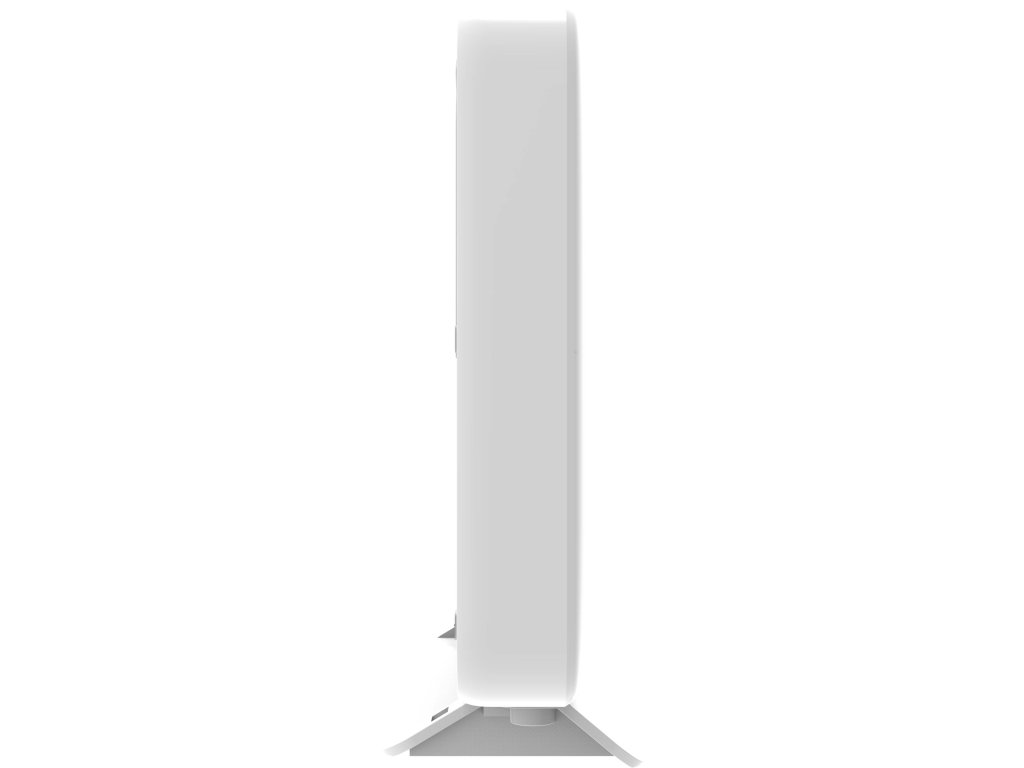

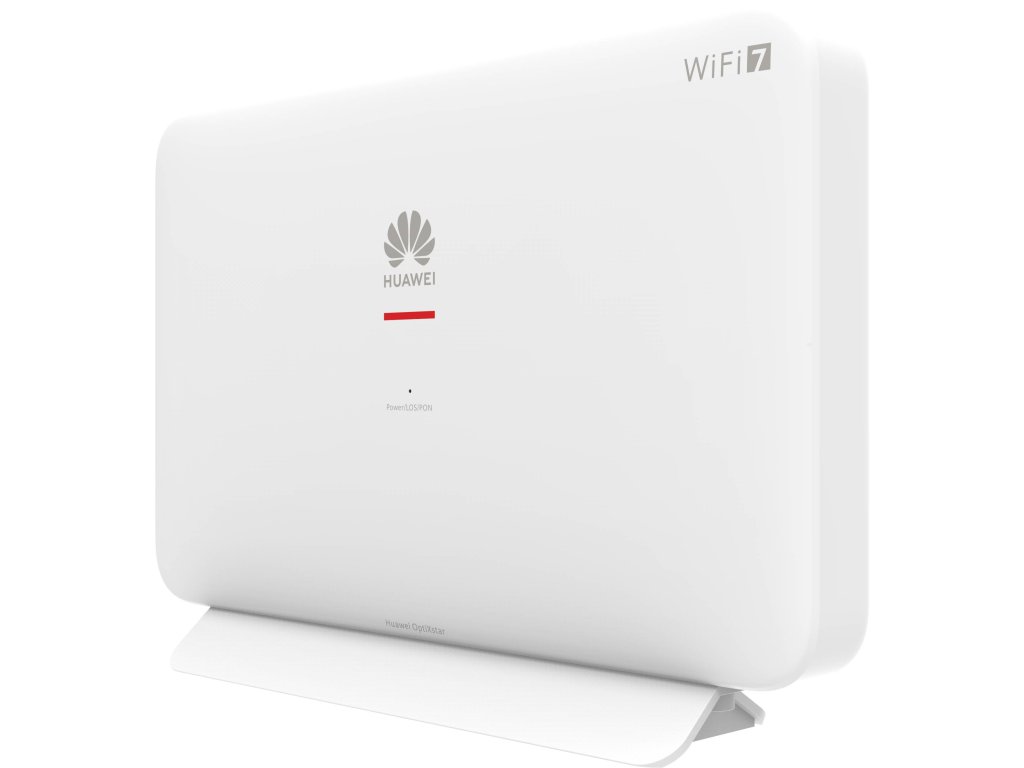

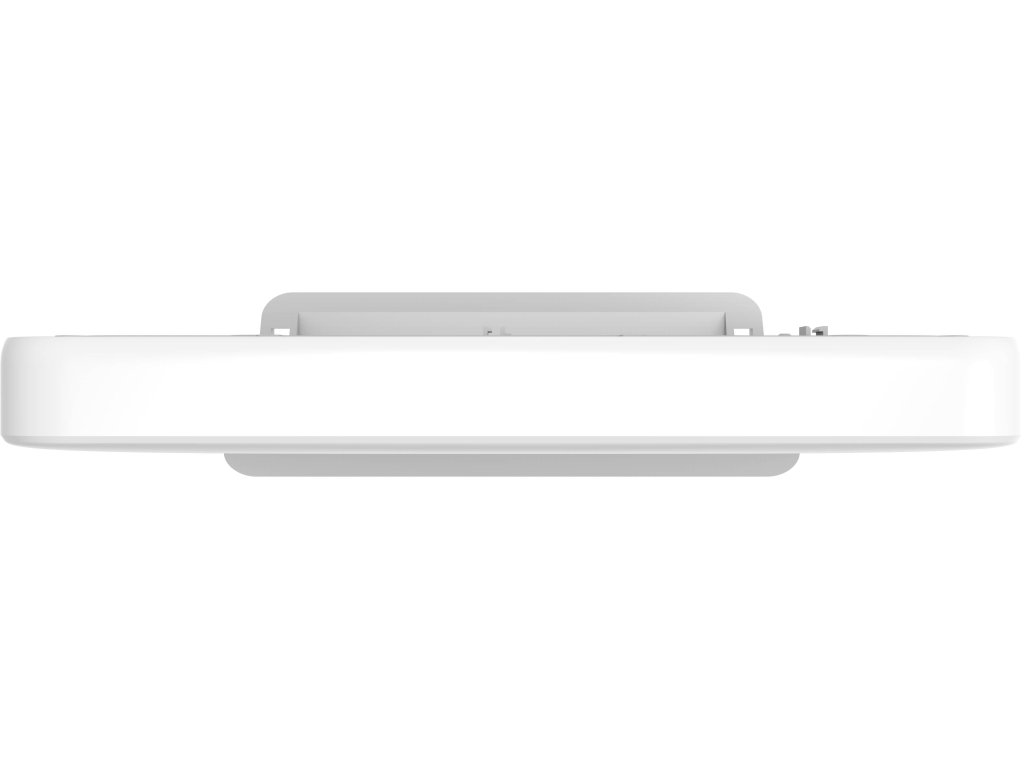

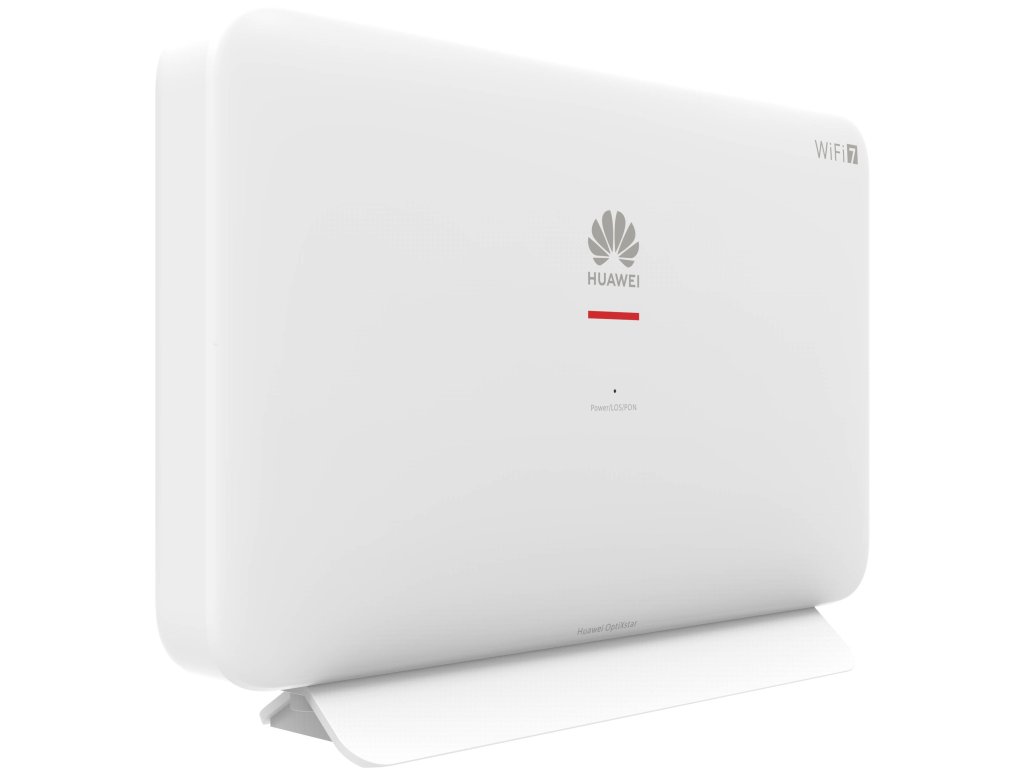

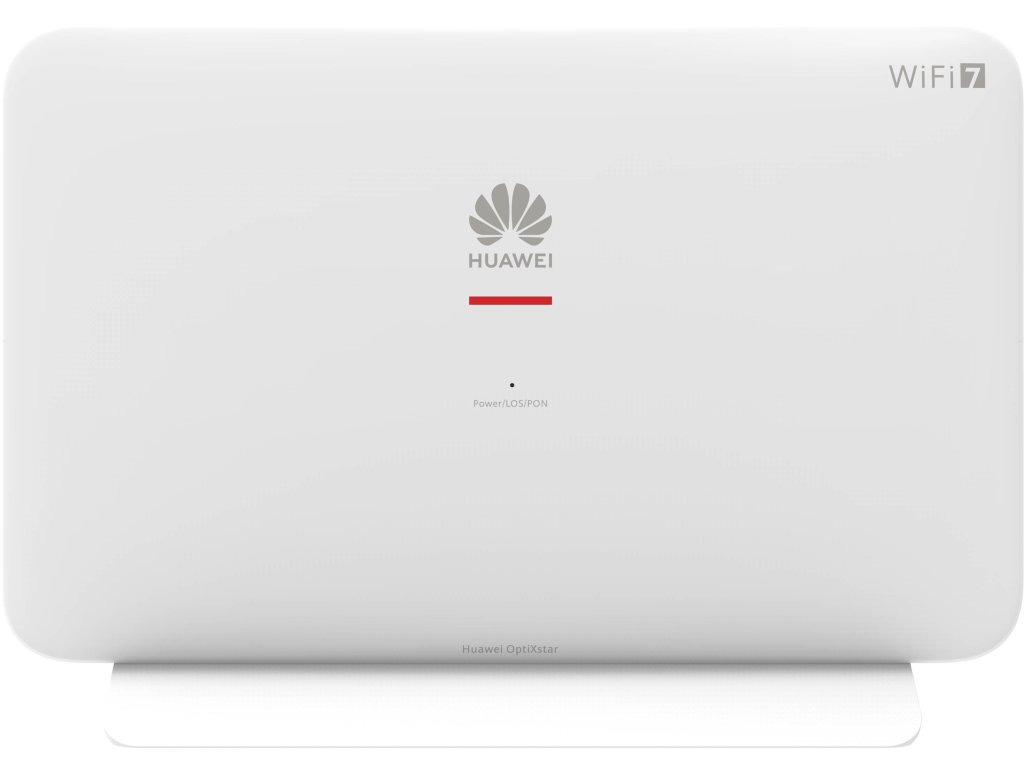

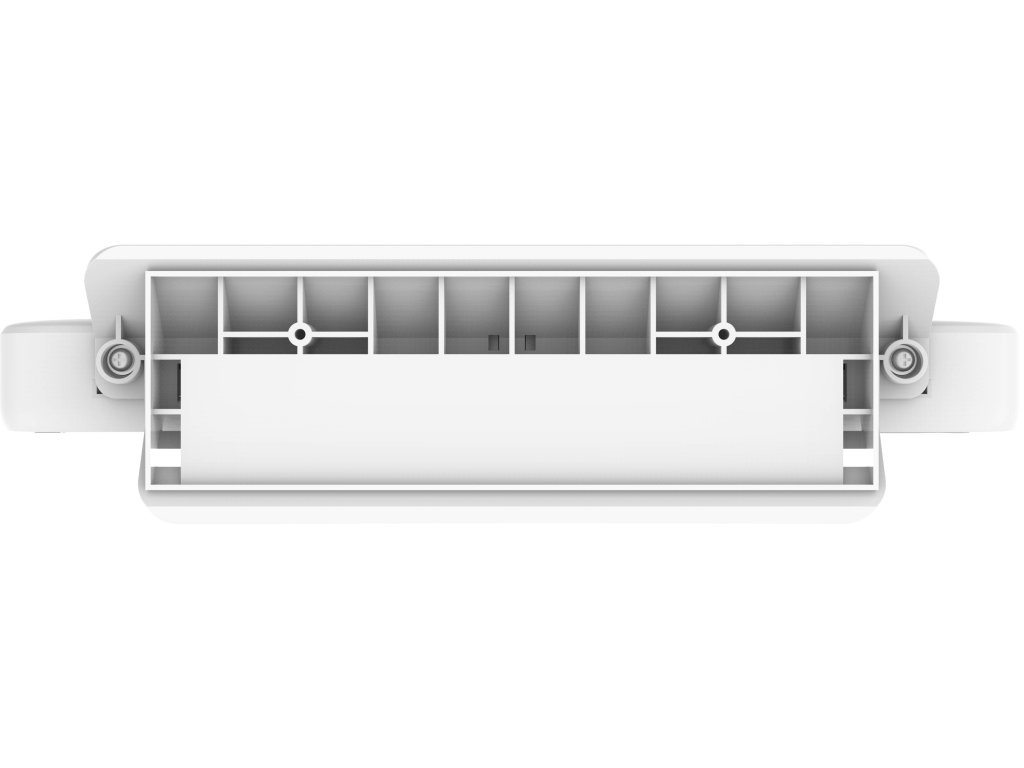

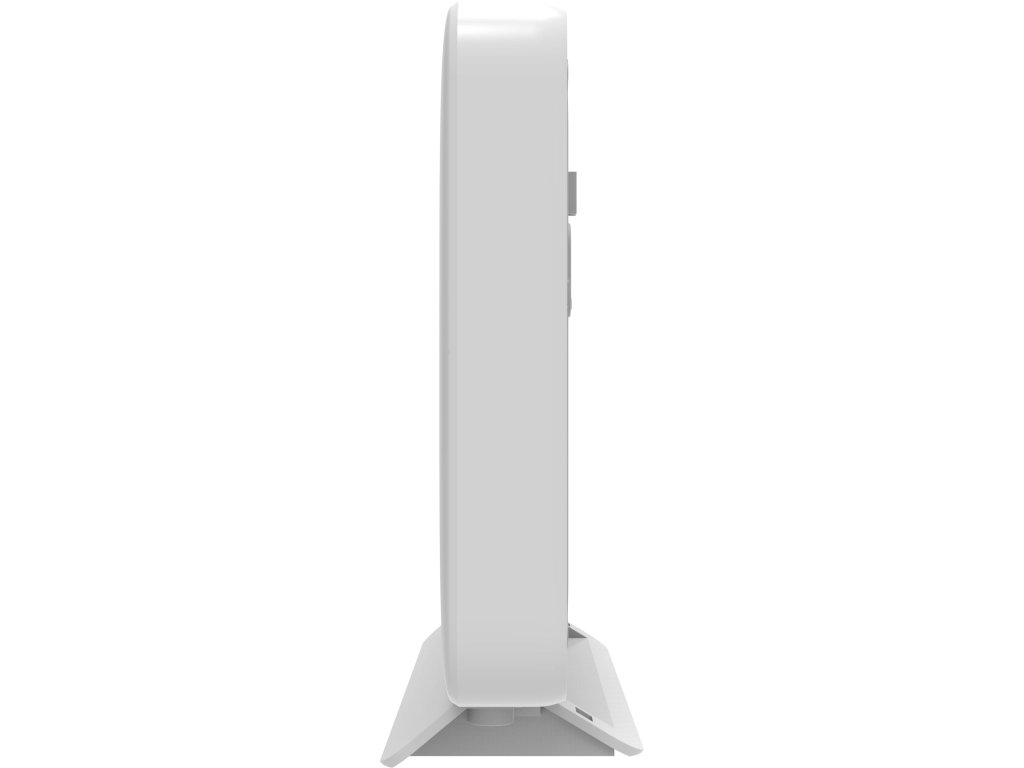

OptiXstar EN8145B7Ns

Kód: EN8M8145B7NS

Neohodnoceno

Značka: HUAWEI

3 742,88 Kč 4 528,88 Kč včetně DPH

obvykle 60 dní

XGS-PON ONT, 1x 2.5GE, 3x GE, Wi-Fi 7 (AX3600), 1x USB 2.0, SC/APC

Detailní informace

ZDARMA

OptiXaccess MA5800-X2 XGS-PON SET

Čekáme na komponenty

243 638,88 Kč

MA5800-X2, 1x řídící karta, 16 GPON/XGS-PON portů C+

MA5800X216BASIC3

Zobrazit všechny související produkty

Detailní popis produktu

Parameters	Huawei OptiXstar EN8145B7Ns
Dimensions (H x W x D)	157 x 250 x 35 mm
Weight (Without Power Adapter)	Approximately 540 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 3 A

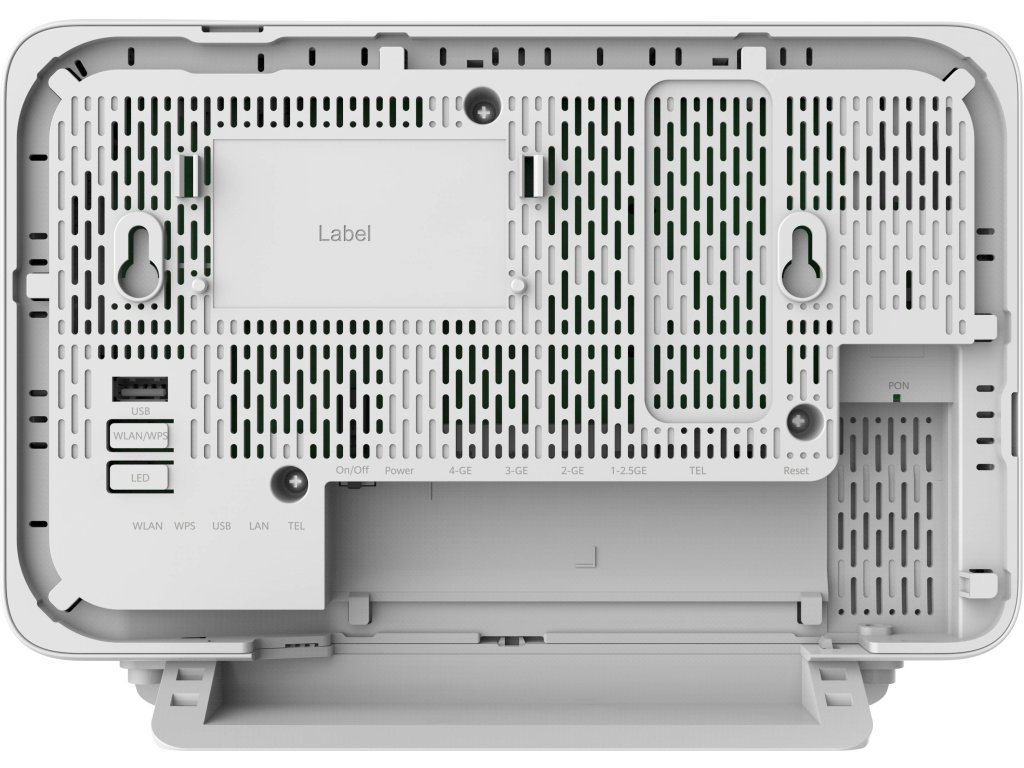

UNI1x10GE,	1x2.5 GE, 3x GE, 1 x POTS, 1 x USB, 2.4G/5G Wi-Fi 7
NNI	XGS-PON
Maximum Power Consumption*	16 W
Installation Mode	Desktop
XGS-PON Port	• SC/APC • Class N1/N2/E1 • Receiver sensitivity: –28 dBm • Wavelengths: US 1260–1280 nm, DS 1575–1580 nm • Wavelength Blocking Filter (WBF) • Flexible mapping between the GEM port and TCONT • SN/Password/SN + Password/Bi-directional authentication based on OMCI • Upstream and downstream FEC • SR-DBA and NSR-DBA • 10 Gbit/s upstream, 10 Gbit/s downstream
Ethernet Electrical Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto port speeds (10/100/1000/2500 Mbit/s) • 1x2.5GE+3xGE
POTS Port	• Maximum REN: 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
WLAN	• IEEE 802.11 b/g/n/ax/be (2.4G) • IEEE 802.11 a/n/ac/ax/be (5G) • 2 x 2 MIMO (2.4G) • 2 x 2 MIMO (5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G and 5G concurrency • Air interface rate: 688 Mbit/s (2.4G), 2,882 Gbit/s (5G) • Beamforming • Band steering • DL OFDMA • DL MU-MIMO • 4096 QAM • 160 MHz frequency bandwidth • WPA3
USB Port	• USB 2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function
Power Saving	COC V7
