OptiXstar EN8010Ts-20

Kód: EN8M8010TSG01

Novinka Tip

Neohodnoceno

Značka: HUAWEI

1 760,15 Kč 2 129,78 Kč včetně DPH

Skladem (10 ks)

XGS-PON ONT, 1x 10GE, , SC/APC

Detailní informace

ZDARMA

XG(S)-PON OLT V1600XG02

Skladem (5 ks)

od 32 475 Kč

Detail

2*XG(S)-PON, 2*GE(RJ45)+2*GE/10GE(SFP+), Dual Power, Cloud management, včetně N2 SFP+

V1600XG02AC

ZDARMA

XG(S)-PON OLT V3600G1

Skladem (1 ks)

99 900 Kč

8*XG(S)-PON, 2*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28), Dual Power, Cloud management, bez SFP+

V3600G1

Novinka Tip

VSOL XGS-PON ENTRANCE SET

Skladem (5 ks)

50 038,55 Kč

Začněte s XGS-PON řešením

724

ZDARMA

XG(S)-PON OLT V3600G1-C

Skladem (1 ks)

106 980 Kč

8*XG(S)/GPON Combo, 2*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28), Dual Power, Cloud management, bez SFP+

V3600G1-C V1.4

Zobrazit všechny související produkty

Detailní popis produktu

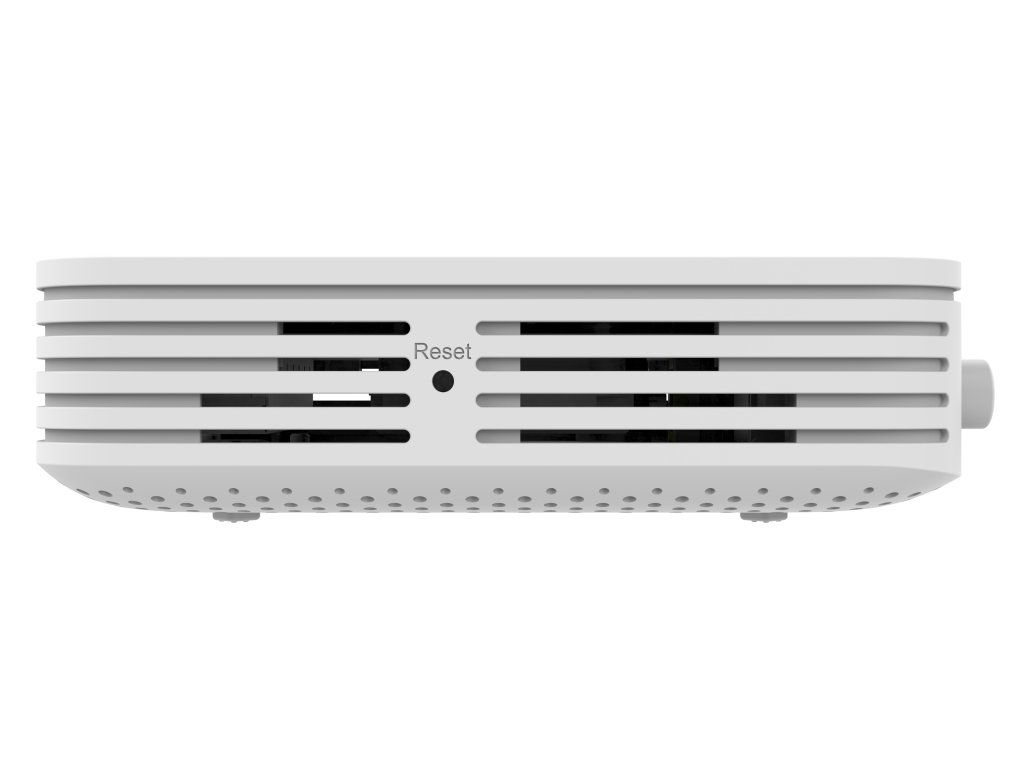

Huawei OptiXstar EN8010Ts-20 je XGS-PON bridge ONT v Huawei all-optical access řešení. Používá technologii XGS-PON k implementaci ultraširokopásmového přístupu pro uživatele.

Specifikace Huawei OptiXstar EN8010T-20
Parameters	Huawei OptiXstar EN8010T-20
Dimensions	32 mm x 105 mm x 110 mm
Weight	350 g
Operating temperature	0°C to 40°C
Maximum power consumption	6 W
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100-240 V AC, 50/60 Hz

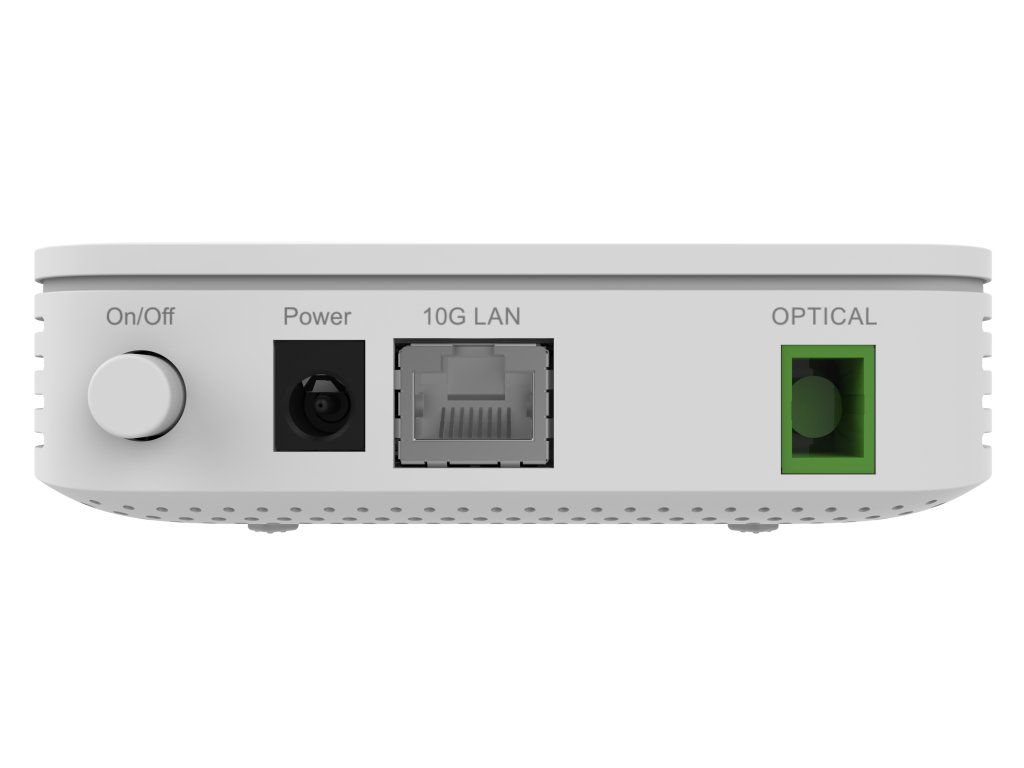

UNI	1 x 10GE

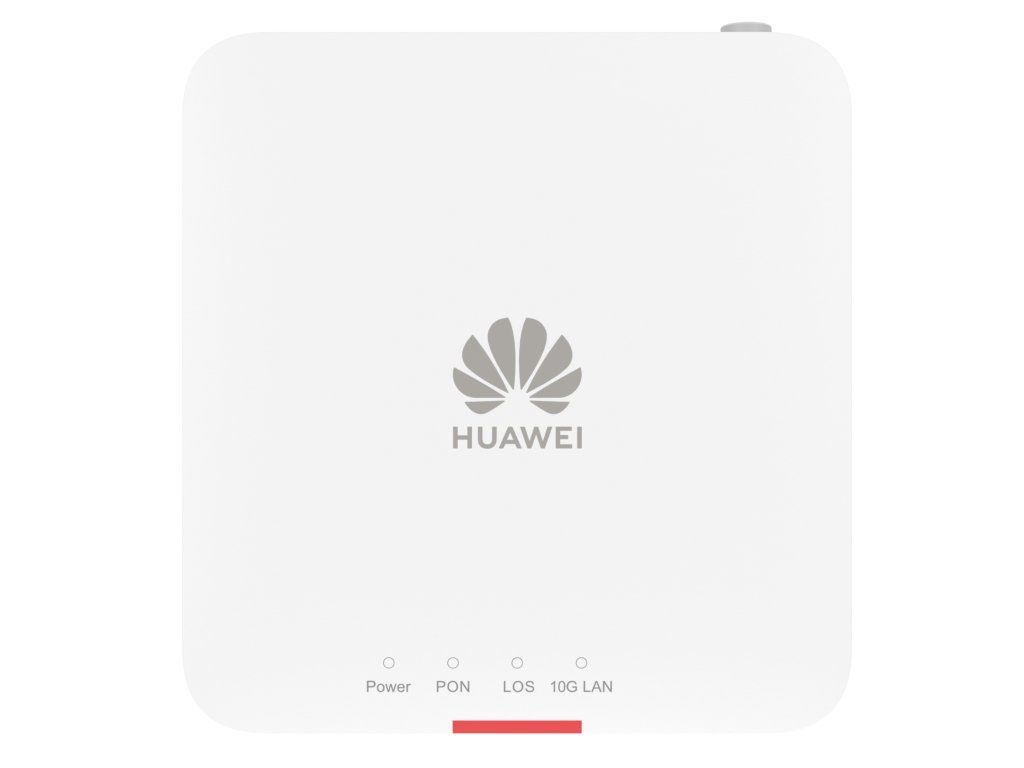

Indicators	Power/PON/LOS/10G LAN
XGS-PON port	• Class N1/N2/E1 • Receiver sensitivity: -28 dBm • Wavelengths: US 1260-1280 nm, DS 1575-1580 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • SN/Password/SN+Password/Bi-directional authentication based on OMCI • Upstream and downstream FEC • SR-DBA and NSR-DBA • 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream
Ethernet port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s, 1000Mbit/s, 100Mbit/s
Product Function
Smart O&M	• Variable-length OMCI messages • Rogue ONT detection and isolation from the OLT • PPPoE/DHCP simulation testing
Multicast	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave VLAN tag translation, transparent transmission, and removal for downstream multicast packets • GMP/MLD protocol packet rate limitation
QoS	• Ethernet port rate limitation • 802.1p priority SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Common O&M	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis
Security	• MAC address filtering
