HG5013-4G
Kód: HG5063-AX30-1Q3G2Detailní popis produktu

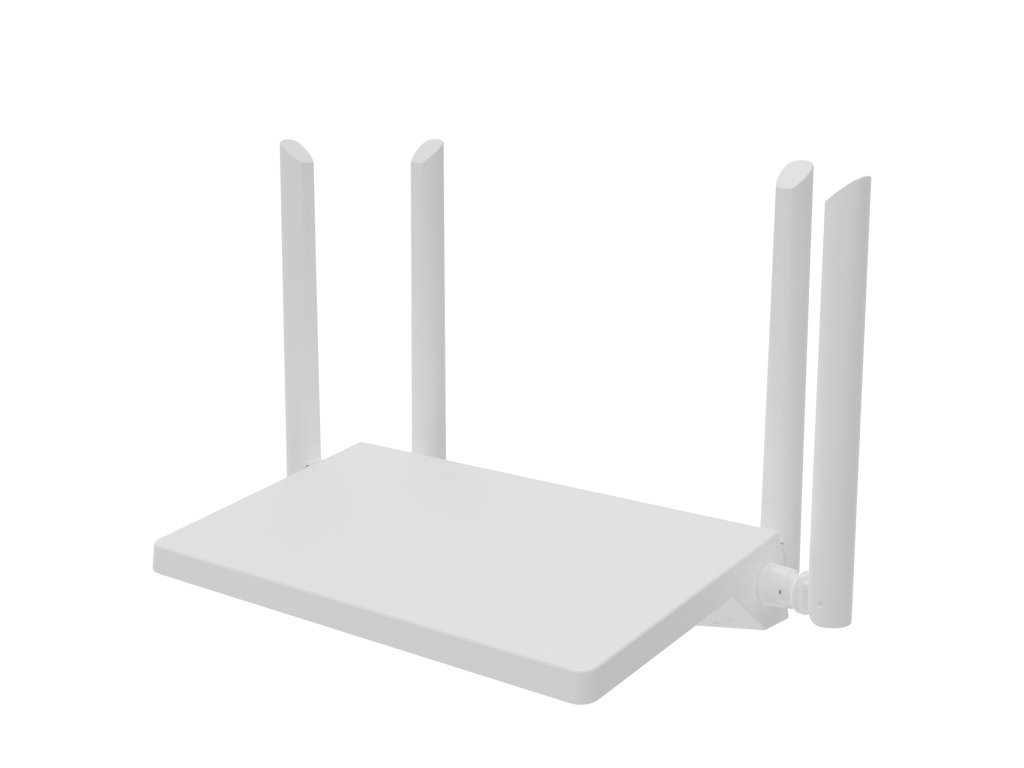

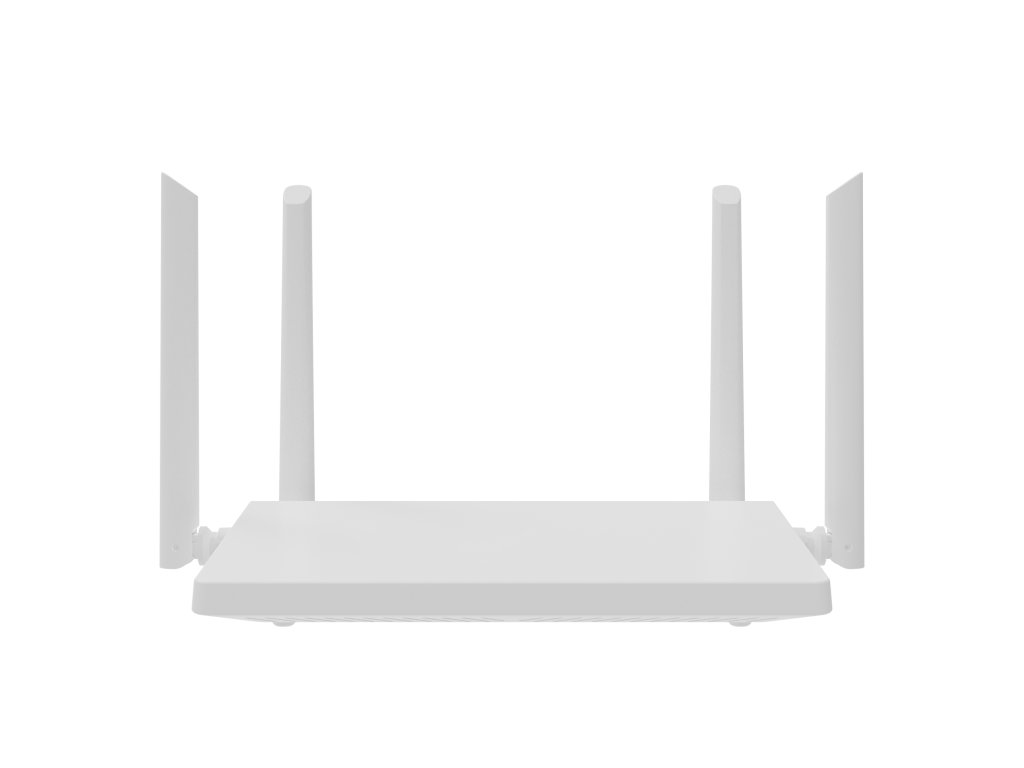

AX3000 Dual-band Gigabit WiFi 6 Router
WiFi 6(AX3000) | 4*GE Port | Low Power | Compact
MESH Networking for Wide Coverage
Hardware Parameter | |
---|---|
Dimension | 179.9×104.1×30.8mm (L×W×H) |
Net weight | 185g |
Working condition | Working temp: -10~+50°C |
Working humidity: 10~90% (non-condensing) | |
Storing condition | Storing temp: -30~+60°C |
Storing humidity: 10~90% (non-condensing) | |
Power adapter | DC 12V, 1A |
Power supply | ≤12W |
Interface | 1×GE , 3×GE + WiFi6 |
Indicators | SYS |
Button | Reset, WPS |
Interface Parameter | |

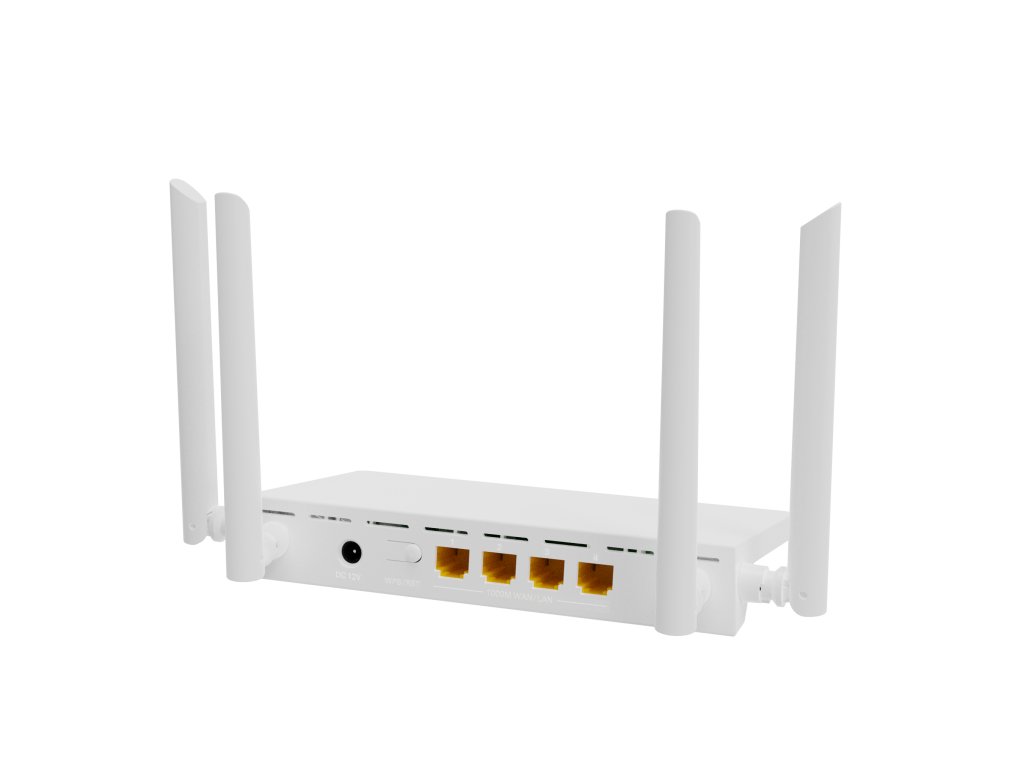

User Interface | 4×GE, Auto adaptive Ethernet interface, RJ45 connectors (1×WAN, 3×LAN) |
WLAN Interface | Compliant with IEEE802.11b/g/n/ac/ax |
2402 Mbps on 5GHz and 574Mbps on 2.4 GHz | |
2.4GHz: 2×2, 5GHz: 2×2; 5×5dBi internal antenna | |
Maximum number of connected devices: 128 (64 for 2.4GHz and 64 for 5GHz) | |
Function Data | |
Management | WEB/Telnet/TR-069/Cloud Management |
Multicast | Support IGMP v1/v2/v3 |
Support IGMP Proxy and Snooping | |
WAN | Maximum speed of 1Gbps |
Wireless | Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz |
WiFi Encryption: WPA/WPA2/WPA3 personal | |
Support MU-MIMO and OFDMA | |
Support Beamforming | |
Support Beamsteering | |
Support WIFI Easy-mesh function | |
L3 | Support IPv4, IPv6 and IPv4/IPv6 dual stack |
Support DHCP/PPPOE/Static | |
Support Static route, NAT | |
Support DMZ, ALG, UPnP | |
Support Virtual Server | |
Support NTP (Network Time Protocol) | |
Support DNS Client and DNS Proxy | |
DHCP | Support DHCP Server & DHCP Relay |
Security | Support local access control |
Support IP address filtering | |
Support URL filtering | |
Support Anti-DoS attack function | |
Support Anti-port scanning function | |
Suppression of protocol-specific broadcast/multicast packets (e.g. DHCP, ARP, IGMP, etc.) | |
Support Anti-Intranet ARP Attack | |
Support Parental control function |
Doplňkové parametry
Kategorie: | MESH |
---|---|
Záruka: | 1 rok |
Downlink port: | 1GE |
Typ PON sítě: | MESH/Router |
Wi-Fi: | Wi-Fi 6 (802.11ax) |
