EG8145X6-10
Kód: EG8145X6-OEMSouvisející produkty
Detailní popis produktu

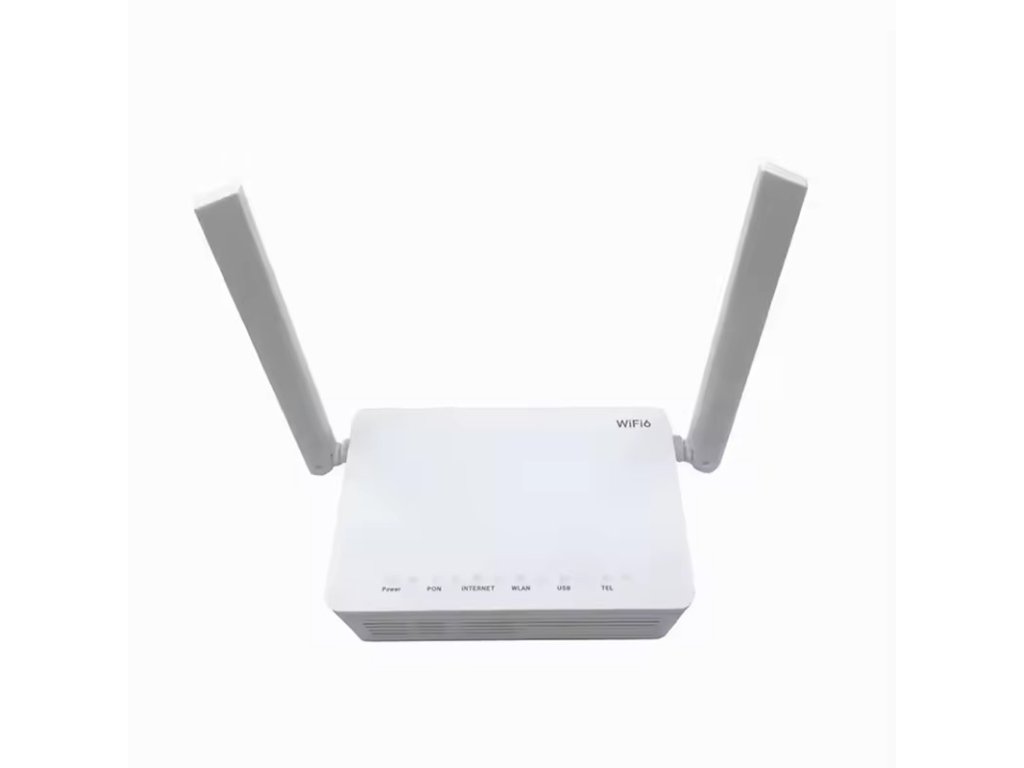

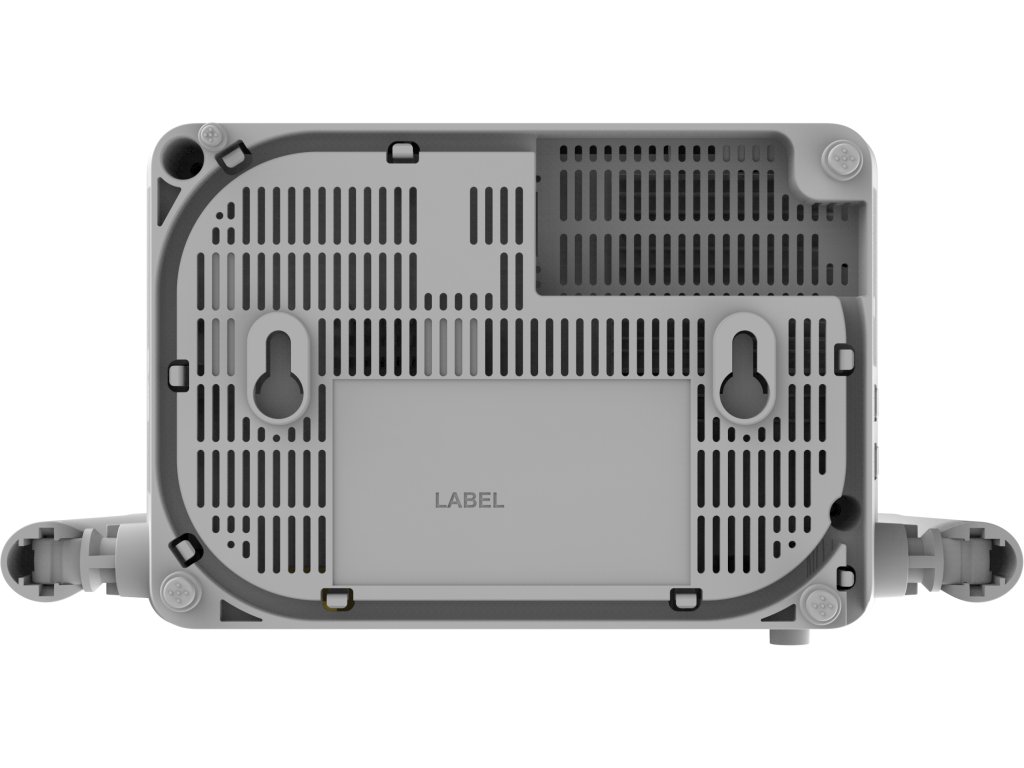

EG8145X6-10 je GPON ONT Gateway s podporou bezdrátové technologie WiFi 6 (802.11a/b/g/n/ac/ax) s maximální modulační rychlostí 574/2402Mbps. ONT jednotka je vybavena čtveřicí LAN portů s rychlostí 10/100/1000Mbps, jedním USB 2.0 portem (FTP, SAMBA, DLNA) a jedním POTS portem, kam lze připojit analogovou telefonní linku. GPON port pro připojení optického kabelu s konektorem SC/APC se důmyslně ukrývá na spodní straně zařízení.
| Parameters | EG8145X6-10 |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity during operation | 5%-95% RH (non-condensing) |
| Input power supply | 12 V DC / 1 A |
| Static power consumption | 6,6 W |
| Maximum power consumption | 12 W |
| Memory | 128 MB Flash, 256 MB RAM |
| NNI | GPON |
| UNI | 4 x GE 1 x POTS Wi-Fi 6 AX3000 1 x USB 2.0 |
| Optical connection | SC/APC |
| Indicator | Power supply / PON / LOS / LAN / TEL / USB / WLAN / WPS |
| weight | 246 g |
| Dimensions (H x W x D) | 35 mm x 155 mm x 105 mm |
| Interface | |
| GPON connection | Class B+ Receiver sensitivity: -27 dBm Optical power overload: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) according to G.984 standard.5 Flexible mapping between GEM port and TCONT GPON: consistent with SN or password authentication according to G.984.3 Bidirectional FEC SR-DBA and NSR-DBA |
| WLAN | IEEE 802.11 b/g/n/ax (2.4G) IEEE 802.11 a/n/ac/ax (5G) 2 × 2 MIMO (2.4G) 2 × 2 MIMO (5G) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS Simultaneous operation 2.4G and 5G Air interface speed: 574 Mbit/s (2.4G), 2402 Mbit/s (5G) Beamforming Bandwidth management DL OFDMA DL MU-MIMO 1024QAM 160 MHz bandwidth WPA3 |
| POTS connection | Maximum Ring Equivalent Number (REN): 4 G.711A/μ, G.729a/b and G.722 encoding/decoding Fax mode T.30/T.38/G.711 DTMF Emergency calls (with SIP) |
| USB port | USB 2.0 FTP-based network storage SAMBA-based file/print sharing DLNA function |
| Ethernet connection | VLAN tags and their removal 1:1 VLAN, N:1 VLAN or transparent VLAN transmission QinQ VLAN Limitation of the number of MAC addresses learned MAC address learning Automatic adaptation: 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
| Functions | |
| Intelligent interconnection | Intelligent Wi-Fi coverage Automatic SIP/H.248 negotiation Any connection for any service Parental control |
| Multicast | IGMP v2/v3 Proxy/Snooping MLD v1/v2 Snooping |
| Intelligent services | Scheduled Wi-Fi shutdown Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing |
| Security | SPI firewall Filtering by MAC/IP/URL addresses |
| QoS | Ethernet port rate limiting 802.1p priority SP/WRR/SP+WRR Packet rate limiting |
| Intelligent O&M | IPTV video quality diagnosis eMDI Detection of rogue ONTs and isolation of OLTs Call emulation, circuit test and loop test PPPoE/DHCP simulation test WLAN emulation |
| Layer 3 functions | PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client Dual stack IPv6/IPv4, DSLite and IPv6 SPI Static/standard routes Multiple services on one WAN connection |
| Normal O&M | OMCI/Web UI/TR069 OMCI messages with variable length Dual system backup and restore |
| Home network functions | Visualized home network management Bandwidth allocation by user Wi-Fi optimization & Wi-Fi roaming |

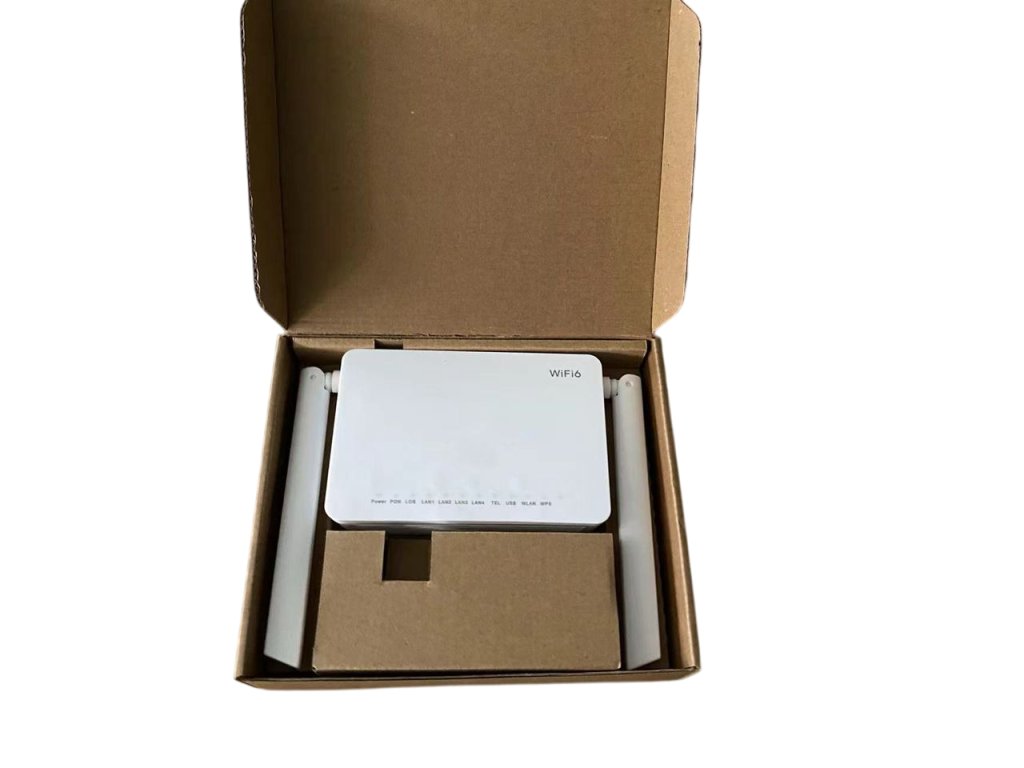

Obsah balení:
- EG8145X6-10

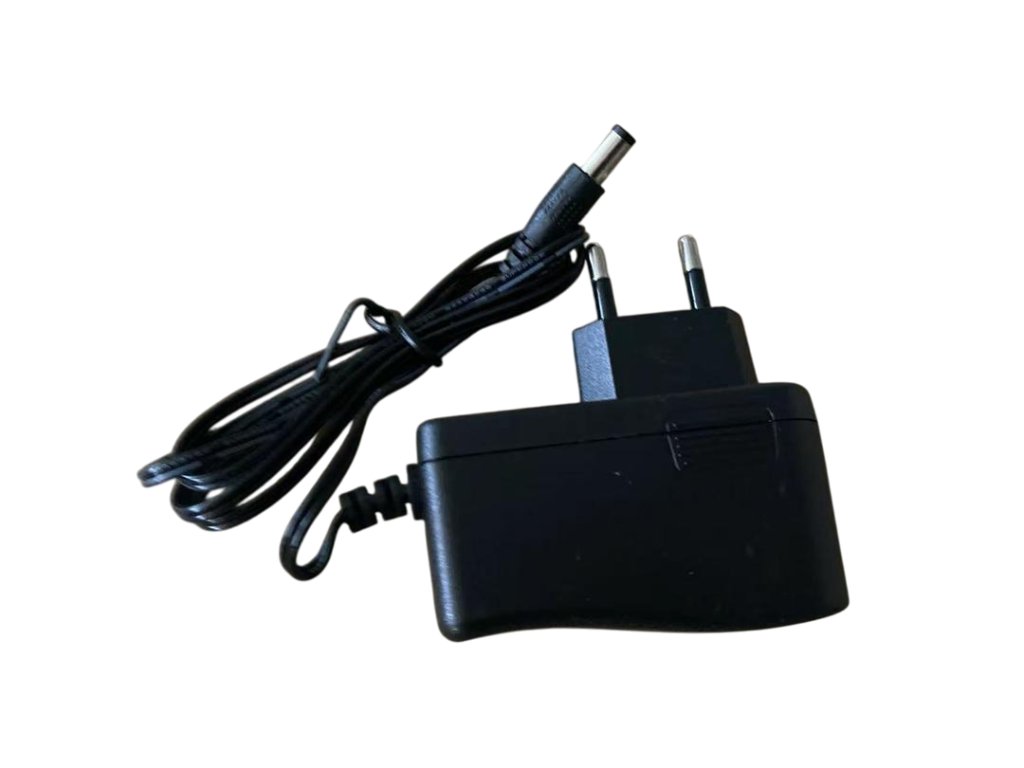

- Napájecí zdroj
Doplňkové parametry
| Kategorie: | ONT |
|---|---|
| Záruka: | 1 rok |
| Downlink port: | 1GE |
| Kompatibilita: | MA5800, VSOL, MA5600 |
| Typ PON sítě: | GPON |
| Wi-Fi: | Wi-Fi 6 (802.11ax) |
